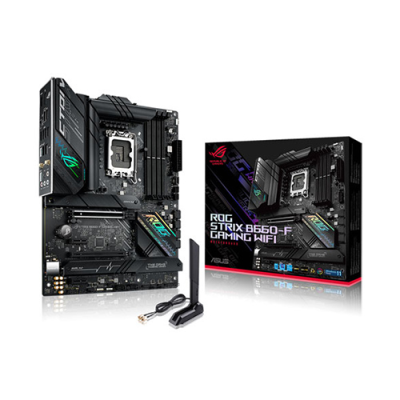

ASUS ROG STRIX B660-F GAMING WIFI 12th Gen ATX Motherboard

Regular Price	28,800৳
Product Code	180
Brand	Asus

Short Details

Model: ROG STRIX B660-F GAMING WIFI
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
16+1 power stages with ProCool power connectors
Integrated I/O cover and VRM heatsinks
DDR5 Overclocking Strength

More Info

28800৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 10 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	B660
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitch SV3H712 AMP - Premium audio capacitors - Audio cover
Expansion Slots
PCI	Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture OptiMem II
Maximum Memory	128GB
Graphics
Graphics	1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3 x USB 3.2 Gen 1 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 10-1 pin header + 1 USB 2.0 4 pin hearer support additional 3 USB 2.0 ports
LAN Port (s)	1 x Intel 2.5Gb Ethernet
Wireless Communication module	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage	Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel B660 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitch SV3H712 AMP - Premium audio capacitors - Audio cover
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 10-1pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	Extreme Engine Digi+ -5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - CPU Socket lever protector -Clear CMOS button - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s)
Bundled Software	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years

Description

ASUS ROG STRIX B660-F GAMING WIFI 12th Gen ATX Motherboard

The Asus ROG STRIX B660-F GAMING WIFI Intel 12th Gen Motherboard provides an optimal power solution, 12 + 1 power stages with ProCool power connections, high-quality alloy chokes, and long-lasting capacitors to support multi-priced CPUs. It features an Optimized Thermal Design. Integrated I/O cover, VRM heatsinks with high-conductivity thermal pads, and three integrated M.2 heatsinks. This motherboard offers high-performance networking. Intel WiFi 6 (802.11ax) and Intel Ethernet 2.5Gb with ASUS LANGuard. Better gaming connectivity is provided by the Asus ROG STRIX B660-F GAMING WIFI Intel 12th Gen Motherboard. It supports HDMI 2.1 and DisplayPort 1.4 output, as well as three M.2 slots and USB 3.2 Gen 2x2 Type-C. To ease setup and boost performance, this motherboard has Smart Control, ASUS Exclusive AI cooling, AI networking, and 2-way noise reduction. It boasts an easy-to-use design, an M.2 latch, a pre-mounted I/O shield, a BIOS FlashBack button, and a Q-LED. It boasts unrivaled customizability, ASUS unique Aura Sync RGB lighting, one RGB header, and three Gen 2 addressable headers. The Asus ROG STRIX B660-F GAMING WIFI comes with a 03-years warranty.
