ASUS ROG STRIX B560-G GAMING WI-FI 10th and 11th Gen Micro ATX Motherboard

Regular Price	19,000৳
Product Code	4930
Brand	Asus

Short Details

Model: ROG STRIX B560-G GAMING WI-FI
Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors
WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet
HDMI 2.0 and DisplayPort 1.4 output
2 x M.2 slots & USB 3.2 Gen 2x2 USB Type-C

More Info

19000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B560 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio	ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio cover
Expansion Slots
PCI	Intel 11th &10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th Gen processors support PCIe 4.0 x16 - Intel10th Gen processors support PCIe 3.0 x16 Intel B560 Chipset: 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
M.2 Socket	M.2_1 slot (Key M), type 2242/2260/2280/22110 M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type	DDR4
Slots	4 x DDR4 (Dual channel)
Supported Memory	5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	128GB
Graphics
Graphics	1 x DisplayPort 1.4 1 x HDMI 1.4 / 2.0
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB: Total 9 ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C) Front USB: Total 7 ports 1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s)	TUF LANGuard
Wireless Communication module	Intel Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later
Supported Storage	Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports
Audio	5 x Audio jacks

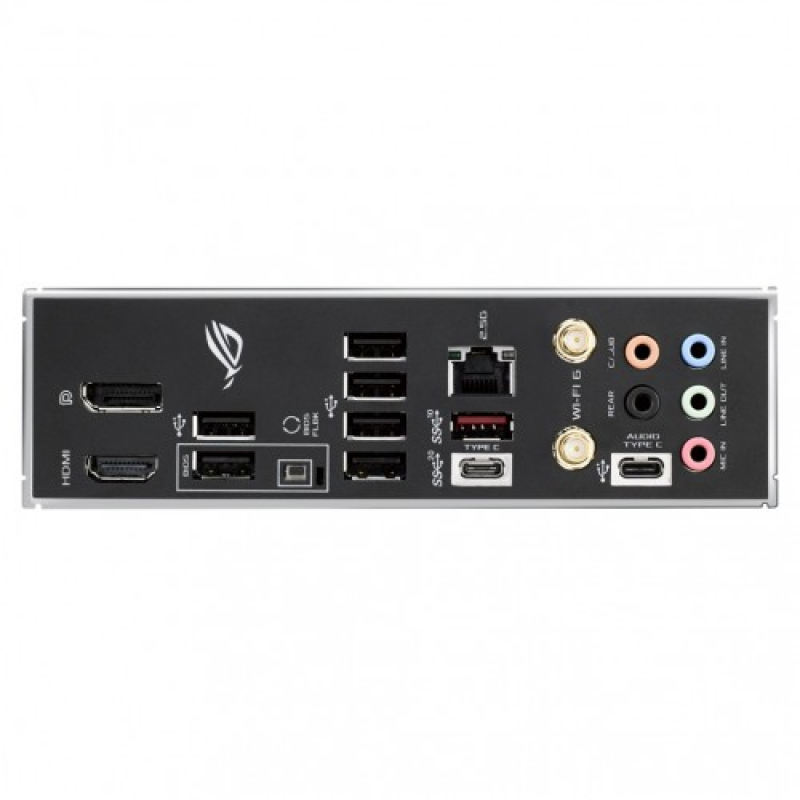

Internal I/O Ports	1 x TB Header (for add-on TB card) 1 x Thunderbolt header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 7 x USB 2.0 port(s) (6 x Type-A, 1 x audio USB Type-C) 1 x HDMI port 1 x DisplayPort 1 x ASUS Wi-Fi Module 1 x Intel I225-V 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack button Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin AIO Pump header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM port 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header 1 x S/PDIF Out header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s)
Bundled Software	ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) -AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update DAEMON Tools MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	03 Years Warranty

Description

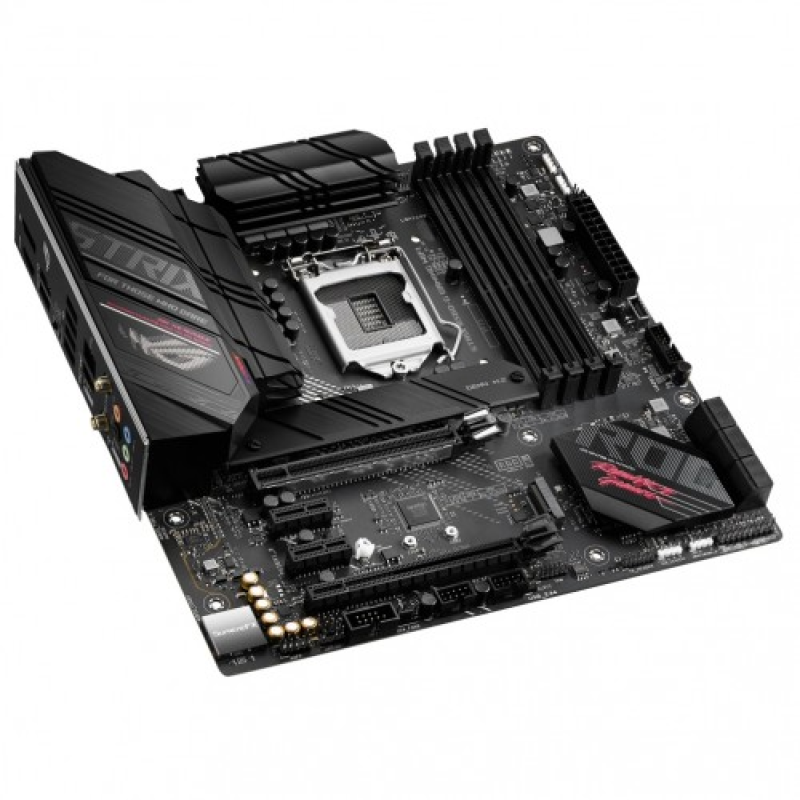

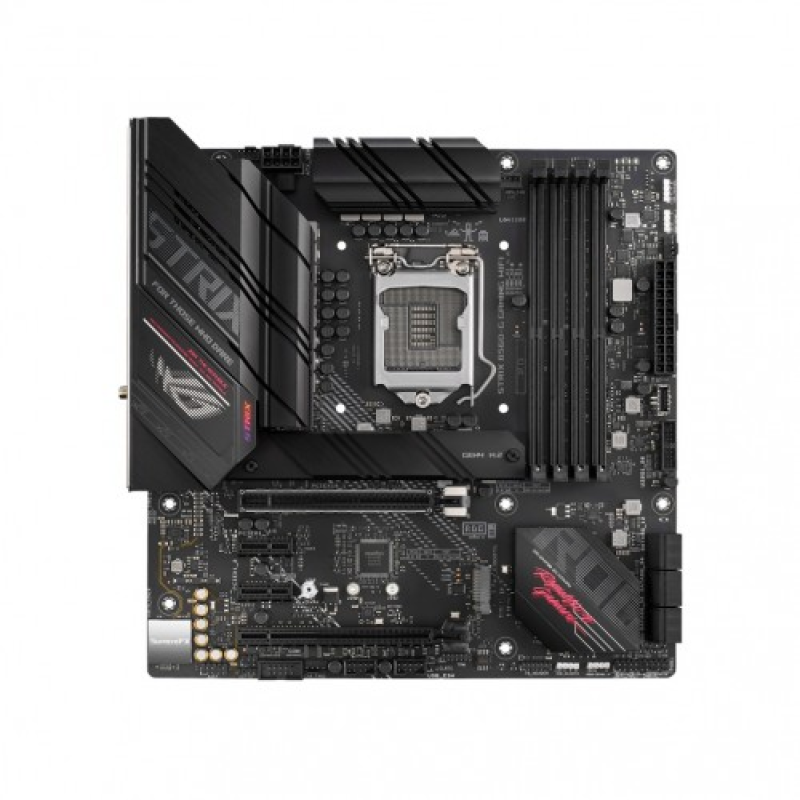

ASUS ROG STRIX B560-G GAMING WI-FI 10th and 11th Gen Micro ATX Motherboard

The ROG Strix B560-G Gaming WiFi delivers everything you need to create a well-balanced Micro ATX-based gaming PC utilizing 11th Generation Intel Core processors. Itâ€™s ready to take on heavyweight graphics cards and neatly crams in options for the latest storage and networking standards. AI enhancements that have trickled down from higher-end counterparts add a further performance boost. As a finishing touch, futuristic aesthetics accented by customizable RGB lighting allow you to make the build uniquely yours. It supports Intel LGA 1200 socket: Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. It comes with a Solid Power Solution. Teamed power stages with ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors. Smooth Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard. It features Best Gaming Connectivity. It supports HDMI 2.0 and DisplayPort 1.4 output, two M.2 slots, and USB 3.2 Gen 2x2 USB Type-C. It has a DIY Friendly Design. M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack, and Q-LED. ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers. It is equipped with Industry-Leading Gaming Audio. SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound, and Sonic Studio III. It has 3 years of warranty.

What is the price of ASUS ROG STRIX B560-G GAMING WI-FI Micro ATX Motherboard in Bangladesh?

The latest price of ASUS ROG STRIX B560-G GAMING WI-FI Micro ATX Motherboard in Bangladesh is 19,100৳. You can buy the ASUS ROG STRIX B560-G GAMING WI-FI Micro ATX Motherboard at best price from our website or visit any of our showrooms.
