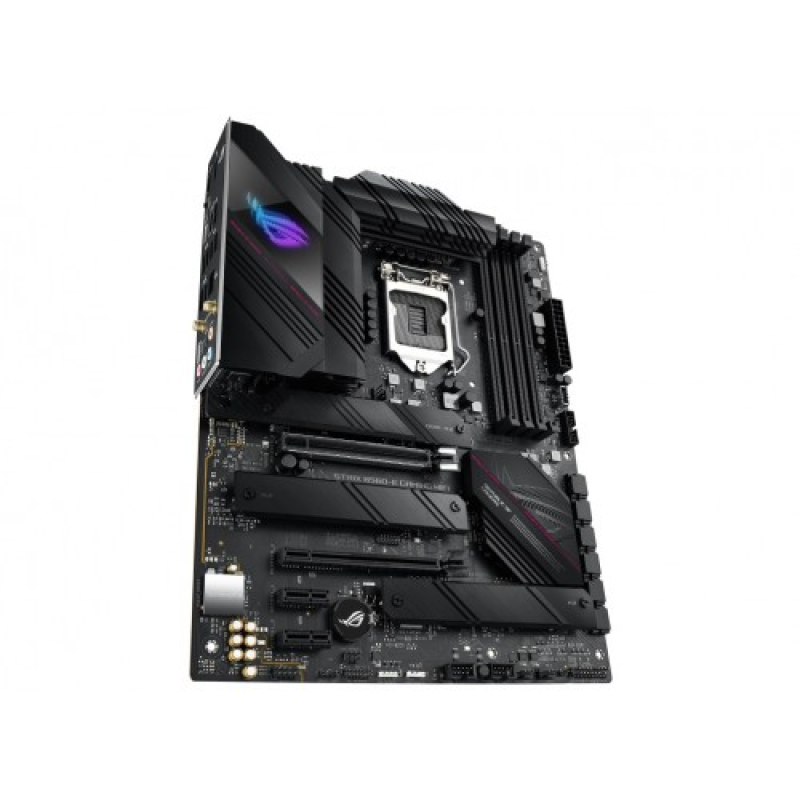

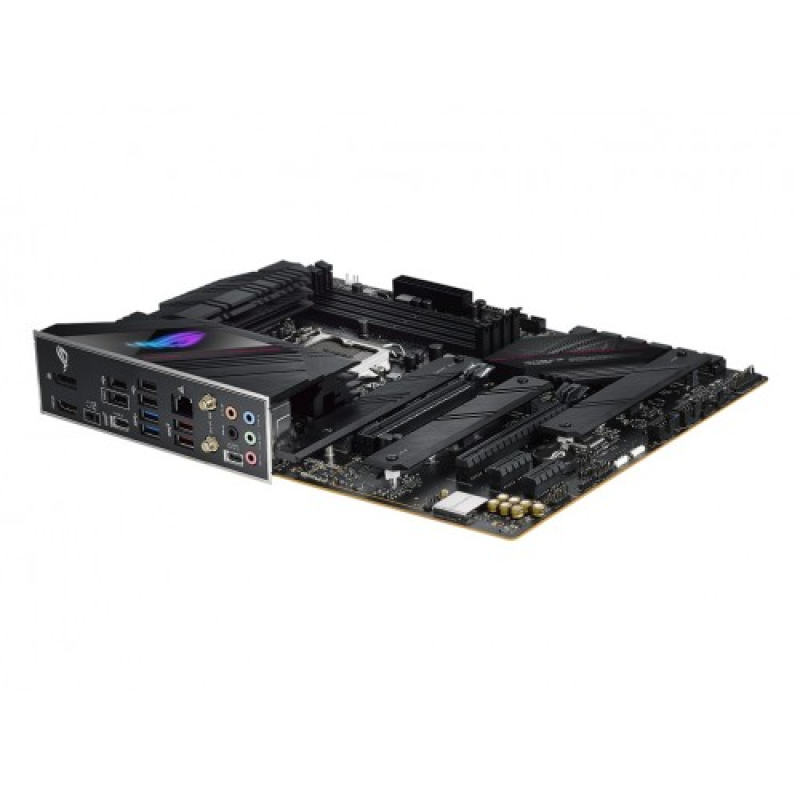

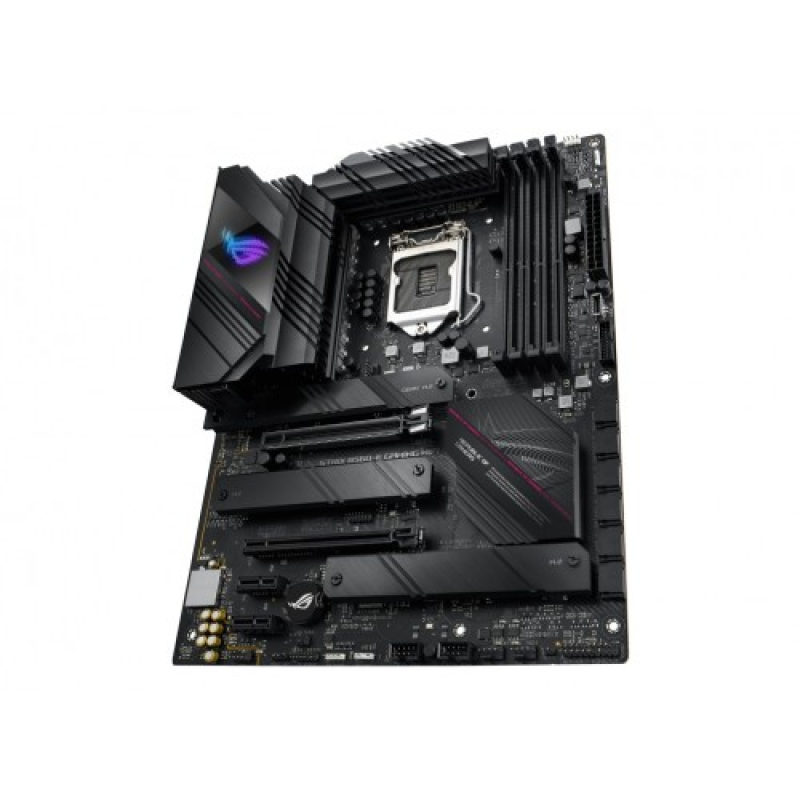

ASUS ROG STRIX B560-E GAMING WIFI 10th and 11th Gen ATX Motherboard

Regular Price	24,300৳
Product Code	4999
Brand	Asus

Short Details

Model: ROG STRIX B560-E GAMING WIFI
Intel LGA 1200 socket for 11th & 10th Gen Core, Pentium Gold and Celeron processors
On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet
HDMI 2.0 and DisplayPort 1.4 output
ASUS-exclusive Aura Sync RGB lighting

More Info

24300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
Chipset	B560
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX 30.5cm x 24.4cm
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ALC4080 + Savitech SV3H712 AMP - Rear audio USB Type-C® port - Premium Japanese audio capacitors - Audio cover
Expansion Slots
PCI	Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot(s) - Intel 11th processors support PCIe 4.0 x16 mode - Intel 10th processors support PCIe 3.0 x16 mode Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)* 2 x PCIe 3.0 x1 slots
M.2 Socket	2 x M.2 slots
Memory
Type	DDR4
Slots	4 x DIMM (Dual channel)
Supported Memory	5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	128GB
Graphics
Graphics	1 x DisplayPort 1.4 1 x HDMI 2.0** * Graphics specifications may vary between CPU types. Only Intel 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update. * Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Connector & Ports
HDMI	1 x HDMI 2.0
Display Port (s)	1 x DisplayPort 1.4
USB (s)	Rear USB: Total 10 ports Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 5 x USB 2.0 ports (4 x Type-A, 1 x audio USB Type-C) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 hardware ready
Supported Storage	Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel11th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports * When M.2_2 runs at SATA mode, SATA6G_1 will be disabled ** To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
Audio	5 x Audio jacks
Internal I/O Ports	1 x TB Header (for add-on TB card) Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5 pin System Panel heade 1 x Thunderbolt header 1 x S/PDIF Out header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB header(s) - Addressable Gen 2 RGB header(s)
Bundled Software	ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 4 - EZ update MyAsus WinRAR DAEMON Tools UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	03 Years Warranty

Description

ASUS ROG STRIX B560-E GAMING WIFI 10th and 11th Gen ATX Motherboard

The ROG Strix B560-E Gaming WiFi delivers everything you need to create a well-balanced Micro ATX-based gaming PC utilizing 11th Generation Intel Core processors. Itâ€™s ready to take on heavyweight graphics cards and neatly crams in options for the latest storage and networking standards. AI enhancements that have trickled down from higher-end counterparts add a further performance boost. As a finishing touch, futuristic aesthetics accented by customizable RGB lighting allow you to make the build uniquely yours. It supports Intel LGA 1200 socket: Ready for 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. It comes with a Solid Power Solution. Teamed power stages with ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors. Smooth Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard. It features Best Gaming Connectivity. It supports HDMI 2.0 and DisplayPort 1.4 output, two M.2 slots, and USB 3.2 Gen 2x2 USB Type-C. It has a DIY Friendly Design. M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack, and Q-LED. ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers. It is equipped with Industry-Leading Gaming Audio. SupremeFX S1220A codec with Savitch SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound, and Sonic Studio III. It has 3 years of warranty.

What is the price of ASUS ROG STRIX B560-E GAMING WIFI ATX Motherboard in Bangladesh?

The latest price of ASUS ROG STRIX B560-E GAMING WIFI ATX Motherboard in Bangladesh is 24,500৳. You can buy the ASUS ROG STRIX B560-E GAMING WIFI ATX Motherboard at best price from our website or visit any of our showrooms.
