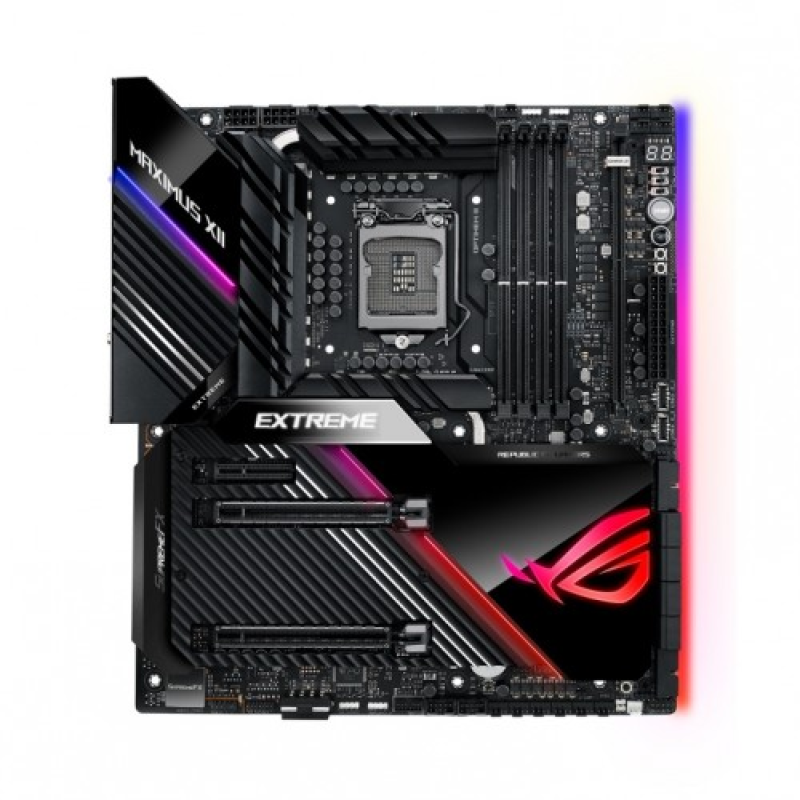

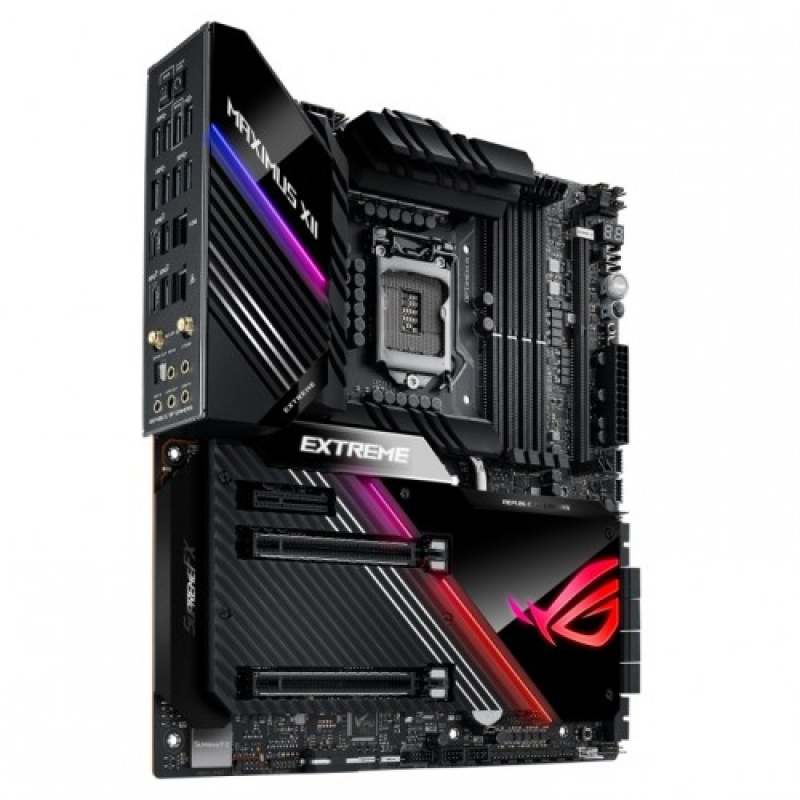

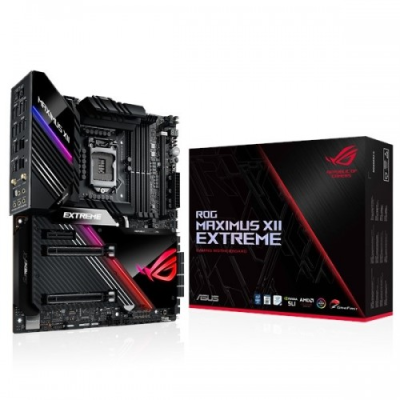

Asus ROG Maximus XII Extreme Z490 10th Gen E-ATX Motherboard

Regular Price	72,000৳
Product Code	187
Brand	Asus

Short Details

Model: ROG Maximus XII Extreme Z490
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold & Celeron Processors
Supports 4 x DIMM, Max. 128GB, DDR4
Supports 4 x M.2 slots & 8 x SATA 6Gb/s ports
Intel I225-V 2.5Gb Ethernet, Intel Wi-Fi 6 AX201

More Info

72000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Supports Intel 14 nm CPU
Chipset	Intel Z490
BIOS	2 x 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor	Extended ATX Form Factor 12 inch x 10.9 inch ( 30.5 cm x 27.7 cm )
Audio	ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220 - ESS™ ES9023 DAC + RC4580 OP AMP - Premium Japanese audio capacitors - Audio Cover LED-illuminated audio jacks - Impedance sense for front and rear headphone outputs - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Optical S/PDIF out port(s) at back panel * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. - Supports : Multi-streaming, Front Panel Jack-retasking
Expansion Slots
PCI	Intel 10th Gen Processors: 2 x PCIe 3.0 x16 (x16 or dual x8) Intel Z490 Chipset: 1 x PCIe 3.0 x4 (x4 mode) 3 x PCIe 3.0 x1
M.2 Socket	1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * OptiMem III * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory	128GB
Graphics
Graphics	Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology
Connector & Ports

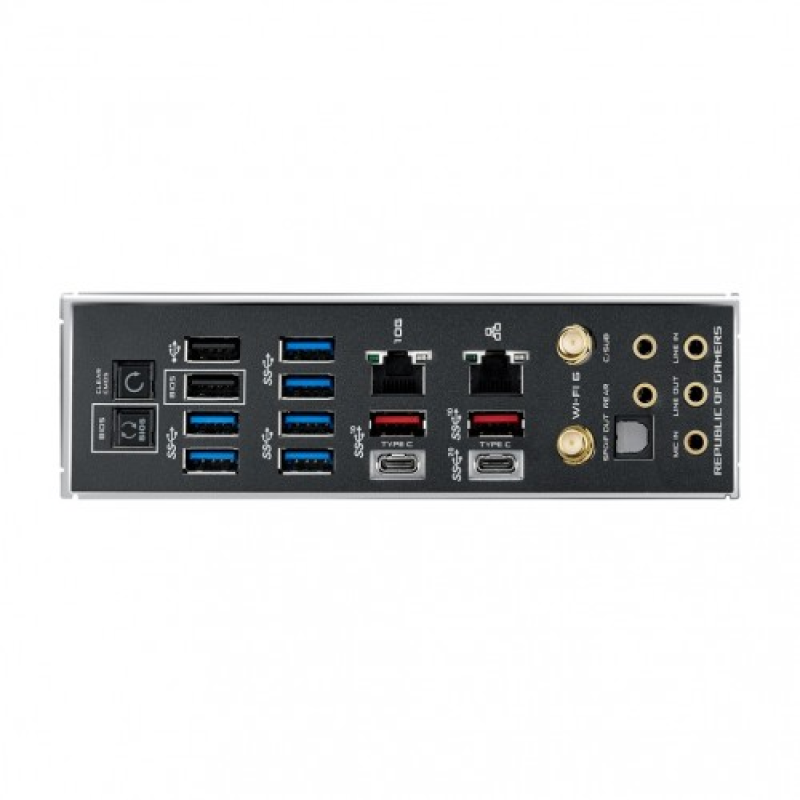

USB (s)	Rear USB Port ( Total 12 ) 1 x USB 3.2 Gen 2x2 port(s) 3 x USB 3.2 Gen 2 port(s)(2 + Type-A +1 + USB Type-CTM) 6 x USB 3.2 Gen 1 port(s)(6 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 10 ) 2 x USB 3.2 Gen 2 front panel connector port(s) 4 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s)
LAN Port (s)	Intel I225-V 2.5Gb Ethernet Marvell AQtion AQC107 10Gb Ethernet ASUS LANGuard
Wireless Communication module	Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports CNVI interface Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160
Supported Storage	Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel 10th Gen Processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) Intel Z490 Chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Rapid Storage Technology supports Intel Optane Memory Ready
Internal I/O Ports	1 x M.2 Socket 2 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only) 2 x USB 3.2 Gen 2 front panel connector 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 1 x FlexKey button 8 x ProbeIt Measurement Points 2 x W_PUMP+ connector 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x WB_SENSOR 8 x Radiator Fan Headers 1 x Thunderbolt header(s) 1 x 4-pin EZ_PLUG Power connector(s) 1 x BIOS Switch button(s) 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 2 x RSVD Switch 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Node Connector(s) 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 8 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 2 x 8-pin ATX 12V Power connector(s) 1 x Slow Mode switch(es) 1 x Thermal sensor connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x Speaker connector 1 x Start button
TPM (Trusted Platform Module )	N/A
Others
Special Features	ROG Extreme OC kit - EZ PLUG - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - Infineon TDA21490 Power Stage - MicroFine Alloy Choke ASUS Q-Design - ASUS Q-Code - ASUS Q-Connector - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink cover - Steel backplate ASUS EZ DIY - BIOS Flashback™ button - Clear CMOS button - Procool II - Pre-mounted I/O shield - SafeSlot AURA Sync - ROG Aura sync backplate - Standard RGB header(s) - Addressable Gen 2 RGB header(s) LiveDash OLED 2"
Bundled Software	ROG Exclusive Software - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - OLED Display AI Suite 3: - 5-Way Optimization with AI Overclocking TPU EPU Digi+ Power Control Fan Xpert 4 Turbo app - EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey
Warranty Information
Manufacturing Warranty	03 Years

Description

Asus ROG Maximus XII Extreme Z490 10th Gen E-ATX Motherboard

The Asus ROG Maximus XII Extreme Z490 Motherboard supports Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold & Celeron Processors. The Asus ROG Maximus XII Extreme delivers ultimate performance combined with efficient, reliable operation. Tuning is now faster and smarter than ever before. AI Overclocking profiles the CPU and cooling to predict the optimal configuration for each system. AI Cooling automatically manages and controls motherboard-connected fans, ensuring the most efficient settings depending on the current system load and temperature. GameFirst VI optimizes and organizes network bandwidth, effectively reducing jitter and eliminating spike lag to ensure smooth online gameplay. Maximus XII Extreme is the ideal foundation for your dream gaming build. An intelligent voltage-regulator module (VRM) design and high-quality components ensure that you'll get the most out of demanding latest-generation Intel processors. More firepower and an overclocking edge are yours with Maximus XII Extreme. Featuring premium components, multiple fan headers, and a bundled fan extension card, Maximus XII Extreme is fully equipped to enable higher performance at lower temperatures. To ensure system stability under heavy CPU loads, Maximus XII Extreme employs large VRM and chipset heatsinks that strike the right balance between surface area and mass. The extra-large heatsinks also cover multiple M.2 slots. ROG provides the tools needed to optimize your system quickly and easily. For those who relish complete control, the UEFI BIOS offers advanced customization options so you can tweak every aspect of your system. Additionally, the M.2 supports Intel VROC technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound while saving a PCIe slot. In addition to extraordinary performance, Maximus XII Extreme provides extensive styling and customization options to let you build a system that truly stands apart. The Asus ROG Maximus XII Extreme comes with 3 years of warranty.

What is the price of Asus ROG Maximus XII Extreme Z490 10th Gen Motherboard in Bangladesh?

The latest price of Asus ROG Maximus XII Extreme Z490 10th Gen Motherboard in Bangladesh is 70,500৳. You can buy the Asus ROG Maximus XII Extreme Z490 10th Gen Motherboard at best price from our website or visit any of our showrooms.
