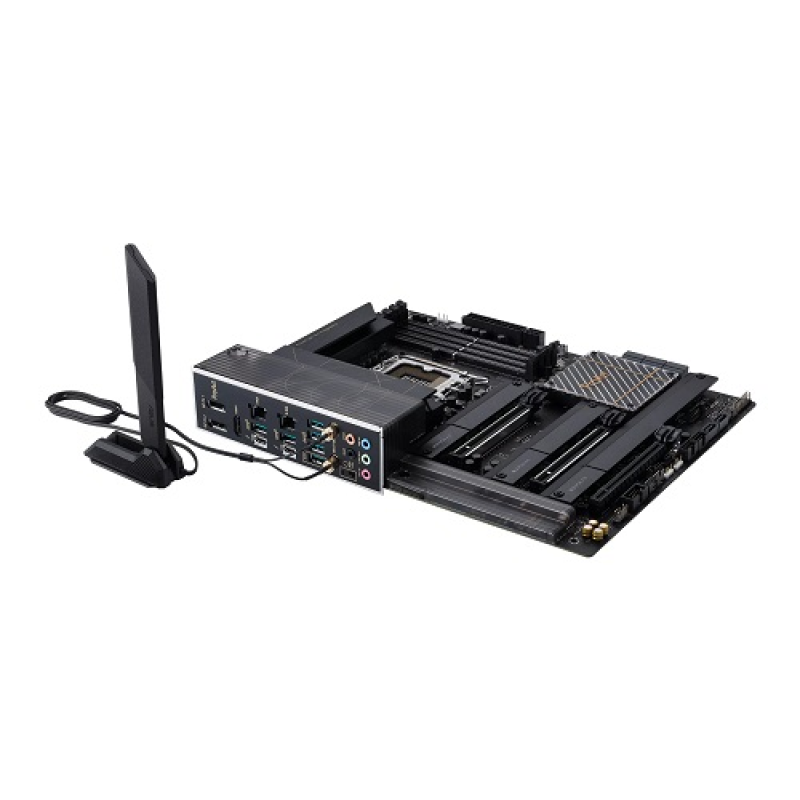

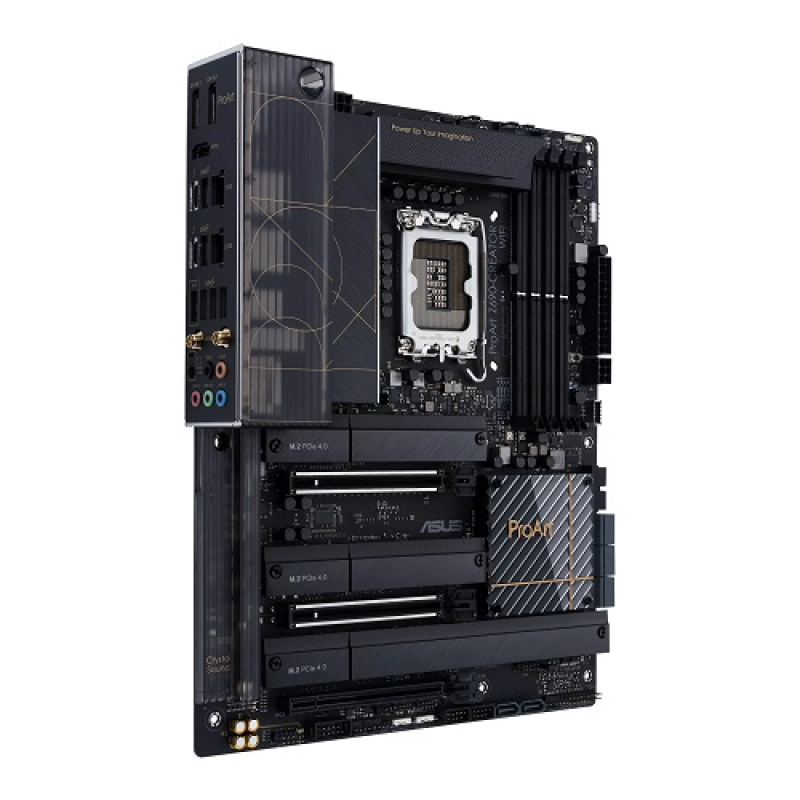

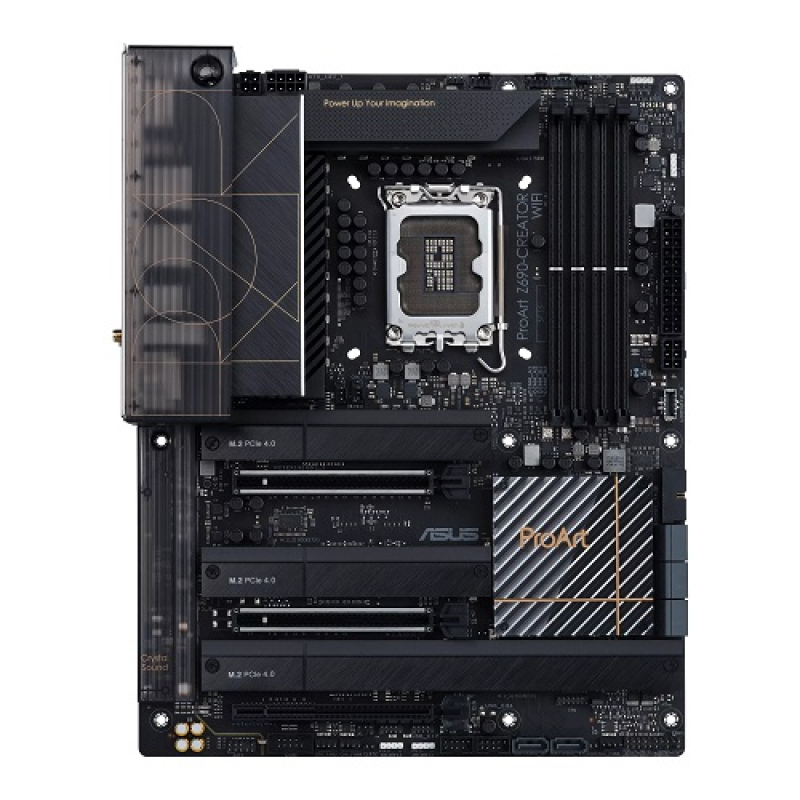

Asus ProArt Z690-CREATOR WIFI ATX Motherboard

Regular Price	49,500৳
Product Code	5031
Brand	Asus

Short Details

Model: ProArt Z690-CREATOR WIFI
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
PCIe 5.0 ready, DDR5 support
Large VRM heatsinks, M.2 heatsink
10 Gb and 2.5 Gb Ethernet, WiFi 6E

More Info

49500৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel 10 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Z690
BIOS	256 Mb
Form Factor	ATX 30.5cmx24.5cm
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit
Expansion Slots
PCI	Intel 12th Gen Processors 2 x PCIe 5.0/4.0/3.0 x16 slot(s) (supports x16 or x8/x8 mode(s)) Intel Z690 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode)
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MT/s Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	128GB
Graphics
Graphics	1 x HDMI port 2 x Intel Thunderbolt 4 ports USB Type-C
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	2 x DisplayPort (Input only)
USB (s)	Rear USB: Total 8 ports 2 x Thunderbolt 4 port(s) (2 x USB Type-C with up to 5V/3A, 15W charging support 6 x USB 3.2 Gen 2 port(s) (6 x Type-A) Front USB: Total 7 ports 1 x USB 3.2 Gen 2x2 connector(s) (support(s) USB Type-C with 60W PD/QC4+) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel 2.5Gb Ethernet 1 x Marvell 10Gb Ethernet ASUS LANGuard
Wireless Communication module	Intel Wi-Fi 6E Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.2 hardware ready
Supported Storage	Supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 8 x SATA 6Gb/s ports
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 5 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 (support(s) USB Type-C 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x Speaker header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x RTC Battery header 1 x Thermal Sensor header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Box Headers - ProCool II - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s)
Bundled Software	ASUS Exclusive Software Armory Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) ProArt Creator Hub CreationFirst MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey
Warranty Information
Manufacturing Warranty	3 years

Description

Asus ProArt Z690-CREATOR WIFI ATX Motherboard

The Asus ProArt Z690-CREATOR WIFI Motherboard is Intel LGA 1700 Socket Ready for 14th/13th/12th Generation Intel Core Processors, and it comes pre-installed with PCIe 5.0, DDR5, and Windows 11. It has a dependable performance. 16+1 power stages, ProCool II power connection, high-quality alloy chokes, and long-lasting capacitors are just a few of the features. A Comprehensive Thermal Design is included on the Asus ProArt Z690-CREATOR WIFI Motherboard. M.2 aluminum heatsinks, a massive VRM heatsink, and a double-sided heatsink Dual Thunderbolt 4 Type-C Ports, Onboard 10Gb and 2.5Gb Ethernet, WiFi 6E, 4 M.2 Slots, and Front Panel USB 3.2 Gen2x2 Type-C Ports with 60W Fast Charge Support are among the features. Advanced security, USB port management, software blacklist, and power on/off controls are all available via ASUS Control Center Express on the Asus ProArt Z690-CREATOR WIFI Motherboard. Tested for 24 hours a day, 7 days a week, and fitted with SafeSlot for further durability. SafeDIMM, PCIe 5.0 Safe slot, Q-LED, M.2 Q-Latch, Pre-Mount I/O Shield, BIOS FlashBack, and FlexKey (Reset, Aura On/Off, Direct Key) are all PC DIY friendly features. The Asus ProArt Z690-CREATOR WIFI 12th Gen Motherboard comes with a 03-year warranty.

What is the price of Asus ProArt Z690-CREATOR WIFI Motherboard in Bangladesh?

The latest price of Asus ProArt Z690-CREATOR WIFI Motherboard in Bangladesh is 49,650৳. You can buy the Asus ProArt Z690-CREATOR WIFI Motherboard at best price from our website or visit any of our showrooms.
