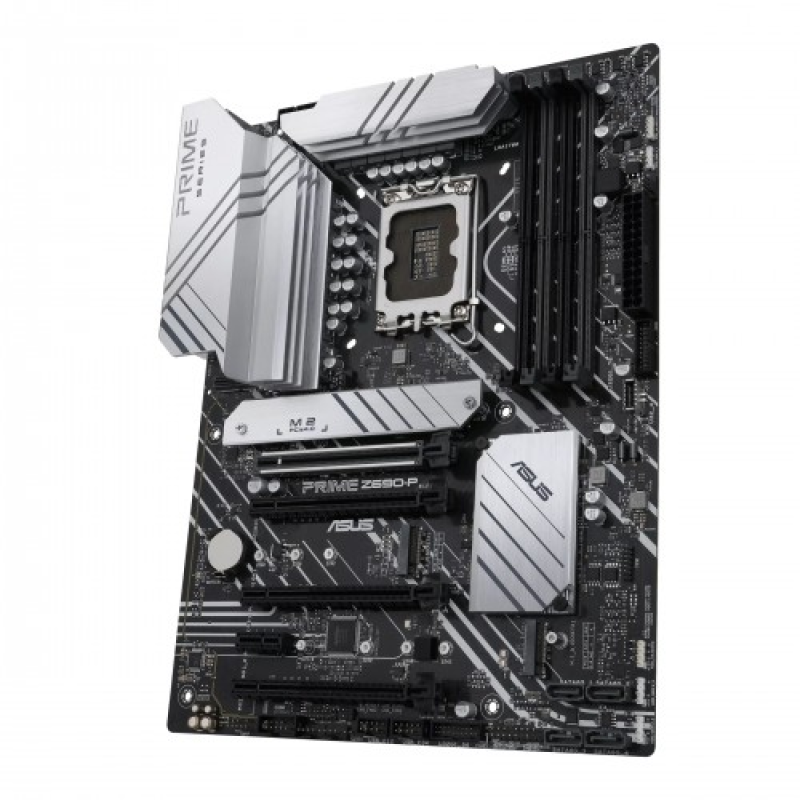

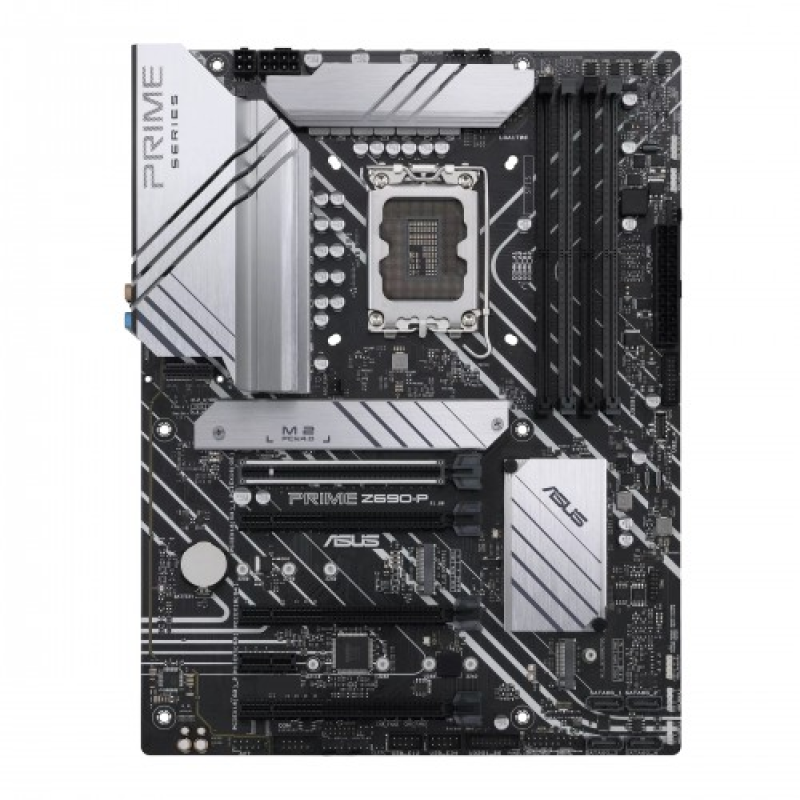

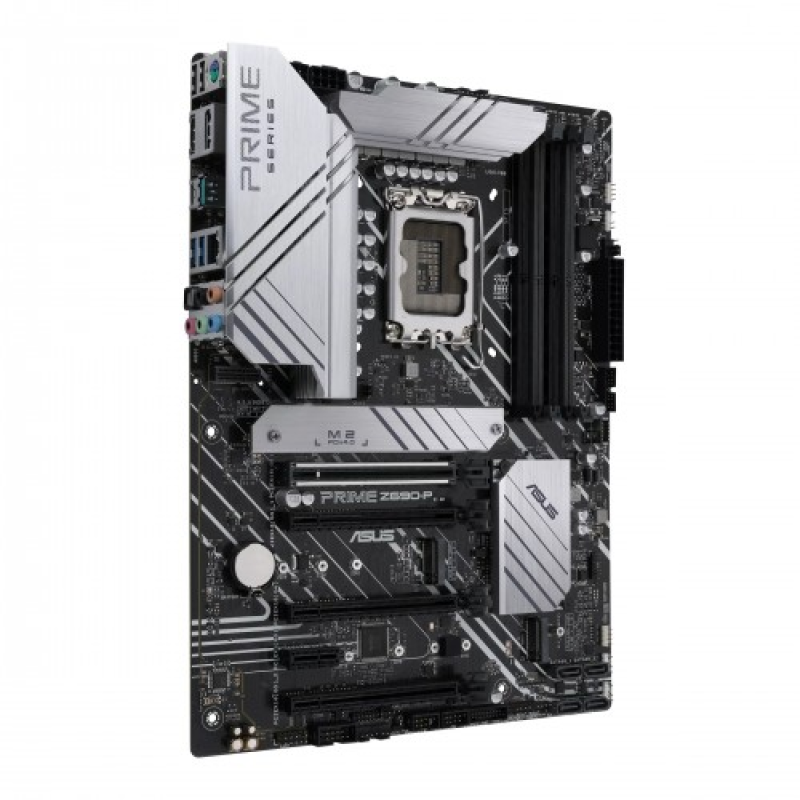

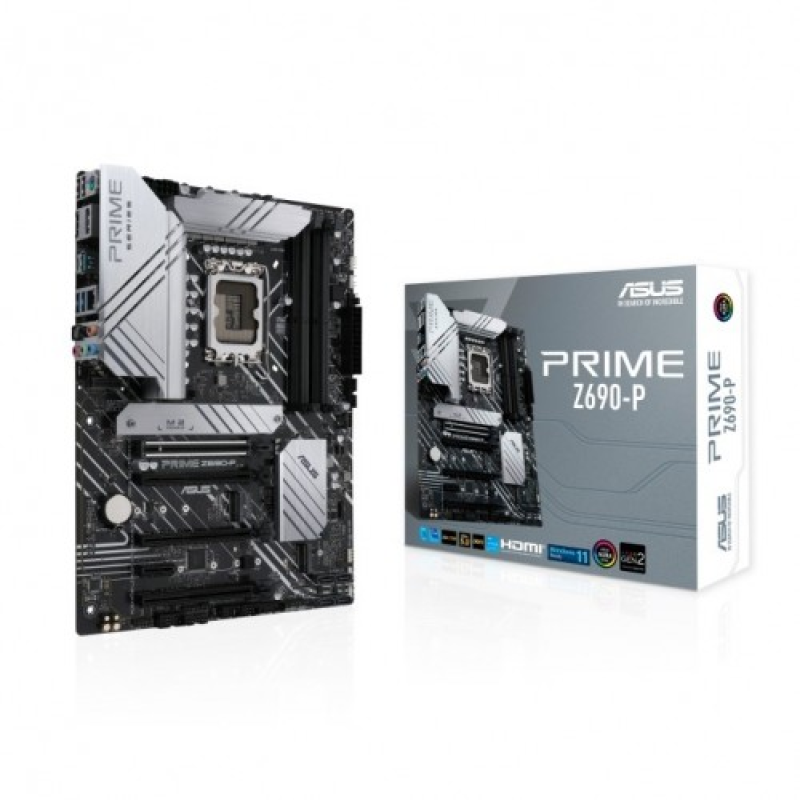

Asus Prime Z690-P ATX Motherboard

Regular Price	26,000৳
Product Code	5006
Brand	Asus

Short Details

Model: PRIME Z690-P
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
14+1 DrMOS, 8+4 pin ProCool connector
Large VRM heatsinks, M.2 heatsink
Supports DDR5, PCIe 5.0, 2.5 Gb Ethernet

More Info

26000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Z690
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX 30.5cm x 23.4cm
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot(s) Intel Z690 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
M.2 Socket	Supports 3 x M.2 slots
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	128GB
Graphics
Graphics	1 x DisplayPort (Support max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort

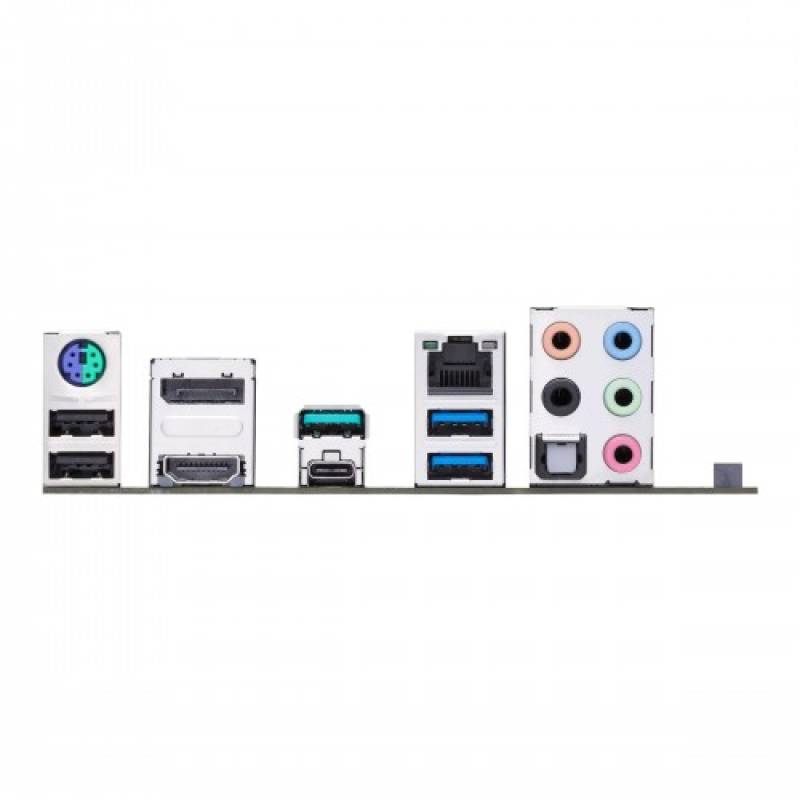

USB (s)	Rear USB:Total 6 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Realtek 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	V-M.2 slot only (Key E, CNVi & PCIe) * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.
Supported Storage	Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Audio	5 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-5pin System Panel header 1 x Thunderbolt header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers
Bundled Software	ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years

Description

Asus Prime Z690-P ATX Motherboard

The Asus Prime Z690-P Motherboard features an Intel LGA1700 socket Ready for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 12th-generation Intel processors. It comes with an enhanced power solution. 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes, and durable capacitors for stable power delivery. It features Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 4. The Asus OptiMem II, careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking The Asus Prime Z690-P is supported with DDR5 memory, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support, 4 PCIe 4.0 M.2. The Asus Prime Z690-P offers a sleek, futuristic-looking build with a black and white finish, space-shuttle-inspired design elements, metallic nameplate, and PCB cover. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The Asus Prime Z690-P comes with 3 years of warranty.

What is the price of Asus Prime Z690-P Motherboard in Bangladesh?

The latest price of Asus Prime Z690-P Motherboard in Bangladesh is 26,200৳. You can buy the Asus Prime Z690-P Motherboard at best price from our website or visit any of our showrooms.
