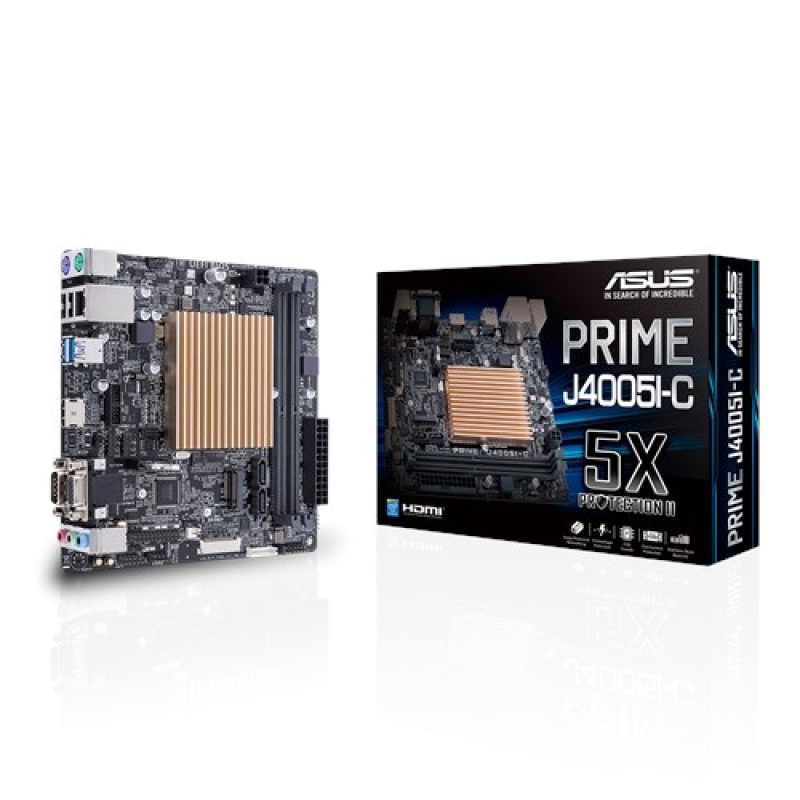

Asus PRIME J4005I-C Mini-ITX Motherboard

Regular Price	0৳
Status	In Stock
Product Code	4792
Brand	Asus

Short Details

Model: PRIME J4005I-C
2.0 GHz Intel Celeron J4005 Dual-Core onboard Processors
2 x Dual-Channel DDR4-2400 Memory Slots
2 x SATA III, 1 x M.2 Slots
New UEFI BIOS and EZ Mode

More Info

0৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Intel Celeron Dual-Core J4005 SoC onboard Processors
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information, ErP ready
Form Factor	Thin Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Audio	Realtek ALC887-VD2 8-Channel High Definition Audio CODEC *2 - Supports: Jack-detection, Front Panel Jack-retasking
Expansion Slots
M.2 Socket	1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (PCIE mode)
Memory
Type	DDR4
Slots	2 x U-DIMM
Supported Memory	DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *1 Dual Channel Memory Architecture
Maximum Memory	Max. 8GB
Graphics
Graphics	Integrated Graphics Processor Multi-VGA output support: HDMI/RGB/LVDS ports - Supports HDMI with max. resolution 4096 x 2304 @ 24 Hz - Supports LVDS with max. resolution 1920 x 1200 @ 60 Hz - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz Maximum shared memory of 512 MB (for iGPU exclusively) Supports up to 3 displays simultaneously
Max Shared Memory	512 MB
Connector & Ports
HDMI	1 x HDMI
D-Sub (s)	1 x D-Sub
USB (s)	Built-in Controller : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , 2 at mid-board) Built-in Controller : 2 x USB 2.0 port(s) (2 at back panel, ) GL852G USB Hub : 4 x USB port(s) (4 at mid-board)
LAN Port (s)	Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
Supported Storage	1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (PCIE mode) 2 x SATA 6Gb/s port(s)
Audio	3 x Audio jack(s)
Internal I/O Ports	2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB mode 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (PCIe x 2 mode) 1 x LPT header 1 x COM port(s) connector(s) 2 x SATA 6Gb/s connector(s) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Chassis Intrusion connector(s) 1 x Clear CMOS jumper(s) 1 x Panel off header 1 x LVDS connector(s) 1 x System panel connector 1 x Flat panel display brightness connector 1 x Display panel VCC power selector 1 x Speaker connector
Others
Special Features	ASUS 5X Protection II : - ASUS LANGuard - 2.5X higher surge tolerance - ASUS Overvoltage Protection - World-class circuit-protecting power design - ASUS DRAM Overcurrent Protection - Prevents damage from short circuits - ASUS Stainless-Steel Back I/O - 3X corrosion-resistance for greater durability - ASUS ESD Guards - Electrostatic discharge protection ASUS Exclusive Features : - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution : - Stylish Fanless Design Heat-sink solution ASUS EZ DIY : - ASUS EZ Flash 3 - ASUS MyLogo 2 - ASUS UEFI BIOS EZ Mode ASUS Q-Design : - ASUS Q-DIMM
Warranty Information
Manufacturing Warranty	3 years

Description

Asus PRIME J4005I-C Mini-ITX Motherboard

The Asus PRIME J4005I-C Mini-ITX Motherboard comes with Intel Celeron Dual-Core J4005 SoC onboard Processors. It features Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build, the result of decades of engineering experience from the world's leading motherboard brand. It comes with ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges. It comes with a world-class circuit-protecting power design. An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. It is equipped with Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels. Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices. ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components. The Asus PRIME J4005I-C comes with 3 years of warranty.

What is the price of Asus PRIME J4005I-C Motherboard in Bangladesh?

The latest price of Asus PRIME J4005I-C Motherboard in Bangladesh is 00৳. You can buy the Asus PRIME J4005I-C Motherboard at best price from our website or visit any of our showrooms.
