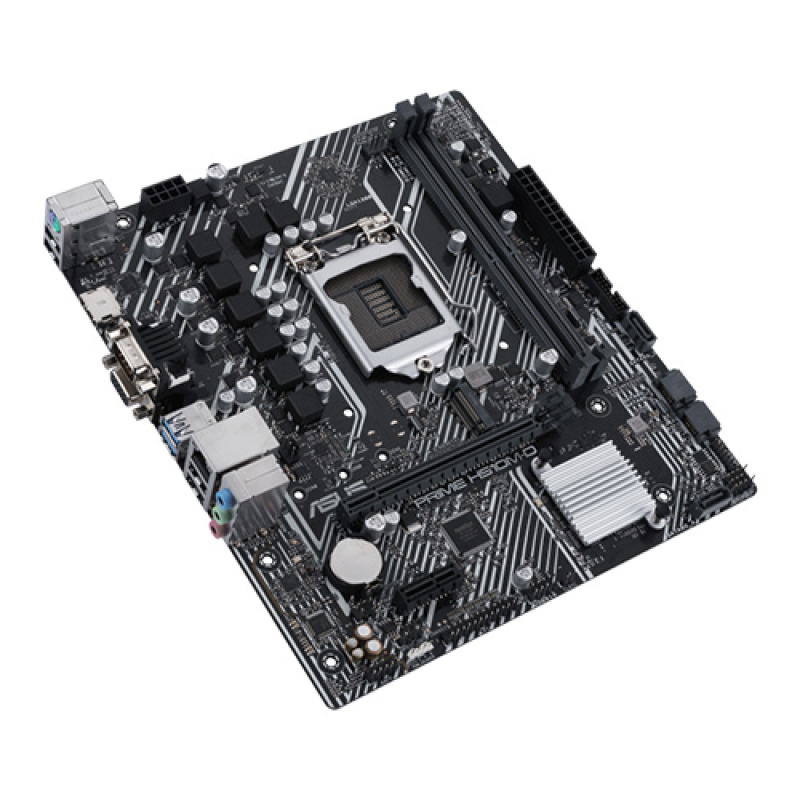

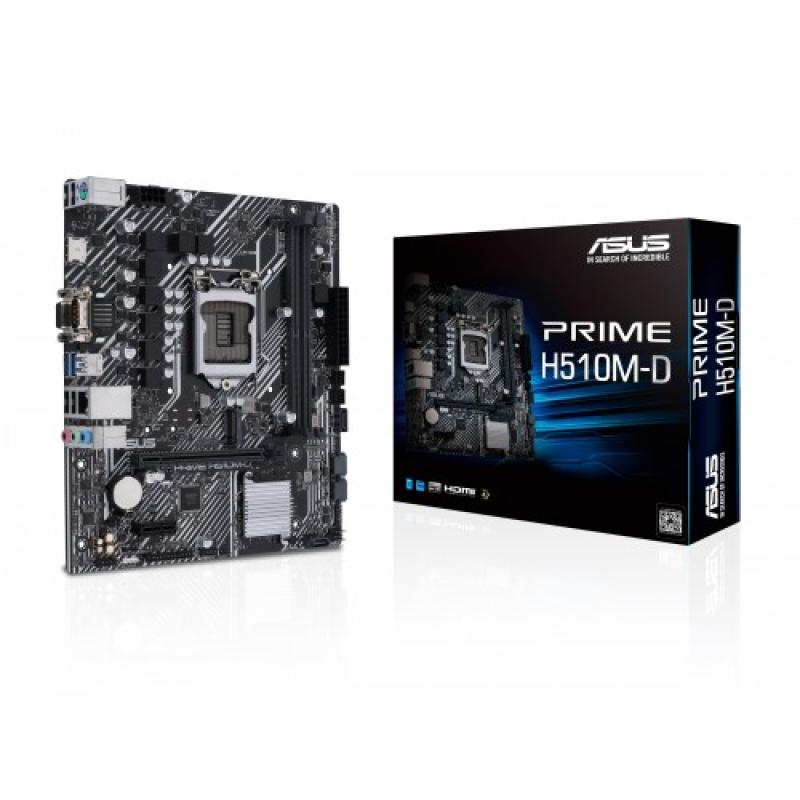

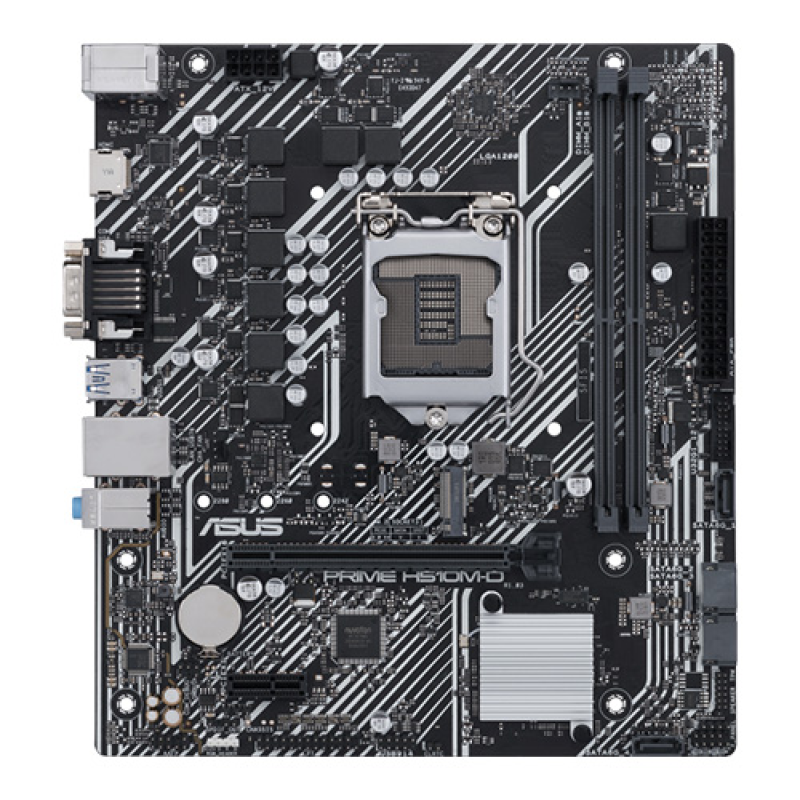

ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard

Regular Price	8,500৳
Product Code	4796
Brand	Asus

Short Details

Model: PRIME H510M-D
Intel LGA 1200 socket: 11th and 10th Gen Processors
PCIe 4.0, 32Gbps M.2, 1Gb Ethernet & USB 3.2 Gen 1
5X Protection III, LPT header & RGB header
PCH heatsink and Fan Xpert

More Info

8500৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H510 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX 22.6cm x 20.3cm
Audio	Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features: - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	1 x PCIe 4.0/3.0 x16 slot 1 x PCIe 3.0 x1 slot
M.2 Socket	Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Memory
Type	2DDR4 (Dual Channel)
Supported Memory	64GB
Maximum Memory	DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture
Graphics
Graphics	1 x D-Sub 1 x HDMI 2.0
Connector & Ports
HDMI	1 x HDMI 2.0
D-Sub (s)	1 x D-Sub port
USB (s)	Rear USB:Total 6 ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB:Total 4 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Supported Storage	M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
Audio	Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC: - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features: - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers (A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.)

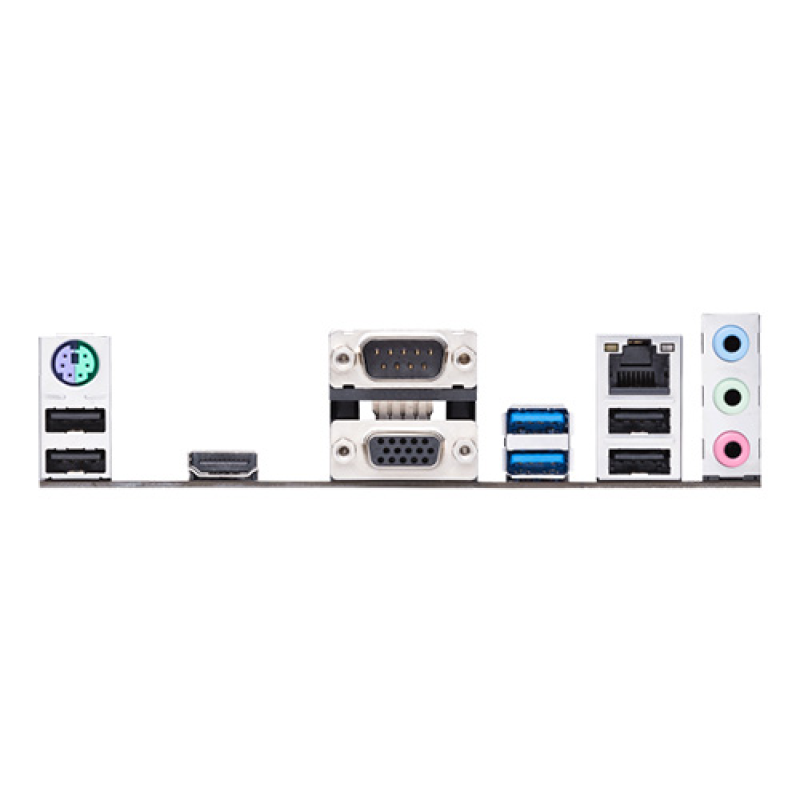

Internal I/O Ports	Fan and Cooling related: 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related: 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related: 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous: 1 x RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports: 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Intel I219-V 1Gb Ethernet port 3 x Audio jacks 1 x COM port 1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Warranty Information
Manufacturing Warranty	03 Years Warranty

Description

ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard

ASUS Prime series motherboards are expertly engineered to unleash the full potential and supports 11th and 10th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME H510M-D provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

This motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. ASUS PRIME H510M-D Motherboard featured with Intel LGA 1200 socket: Ready for 11th and 10th Gen Intel Processors, Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel 1 Gb Ethernet and USB 3.2 Gen 1, Comprehensive cooling: PCH heatsink and Fan Xpert, 5X Protection III: Multiple hardware safeguards for all-round protection.The ASUS Prime H510 series is engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads and also features with comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.

ASUS H510 series motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. This latest ASUS PRIME H510M-D Intel 10th and 11th Gen Micro ATX Motherboard comes with 03 Years Warranty.

What is the price of ASUS PRIME H510M-D 10th & 11th Gen Micro ATX Motherboard in Bangladesh?

The latest price of ASUS PRIME H510M-D 10th & 11th Gen Micro ATX Motherboard in Bangladesh is 11,00৳. You can buy the ASUS PRIME H510M-D 10th & 11th Gen Micro ATX Motherboard at best price from our website or visit any of our showrooms.
