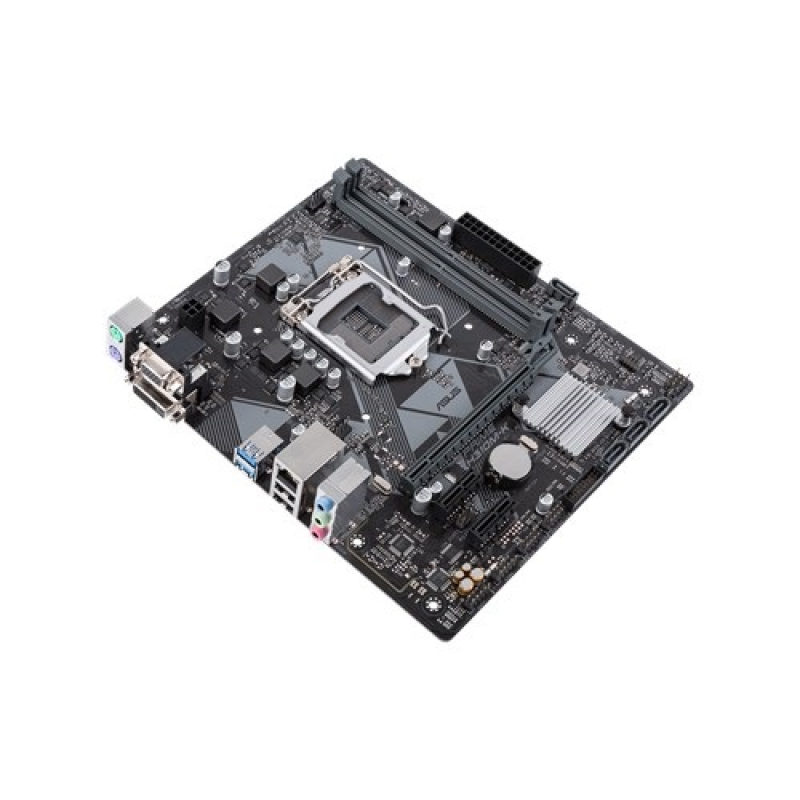

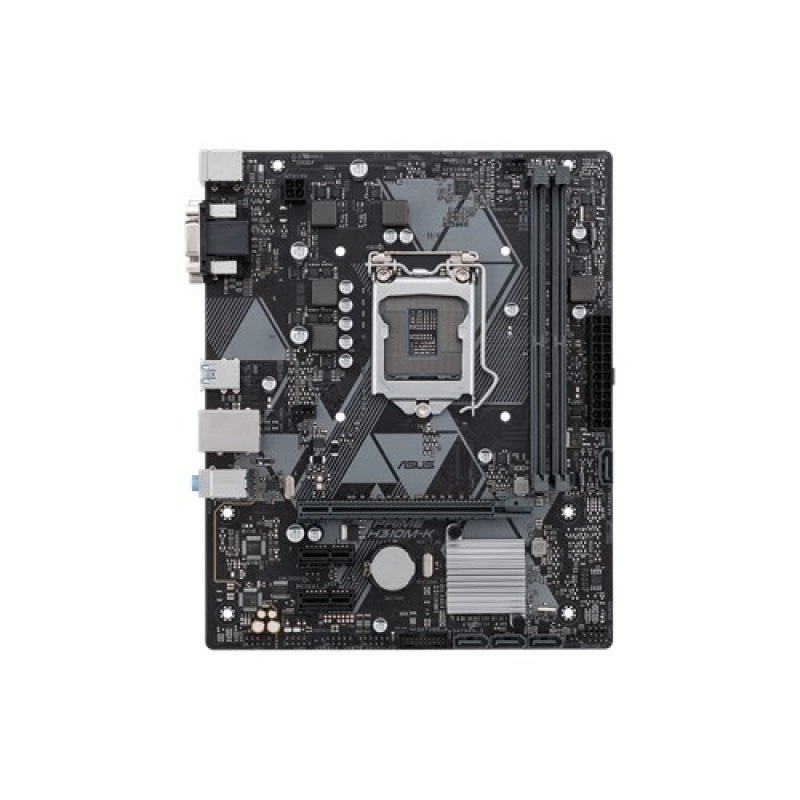

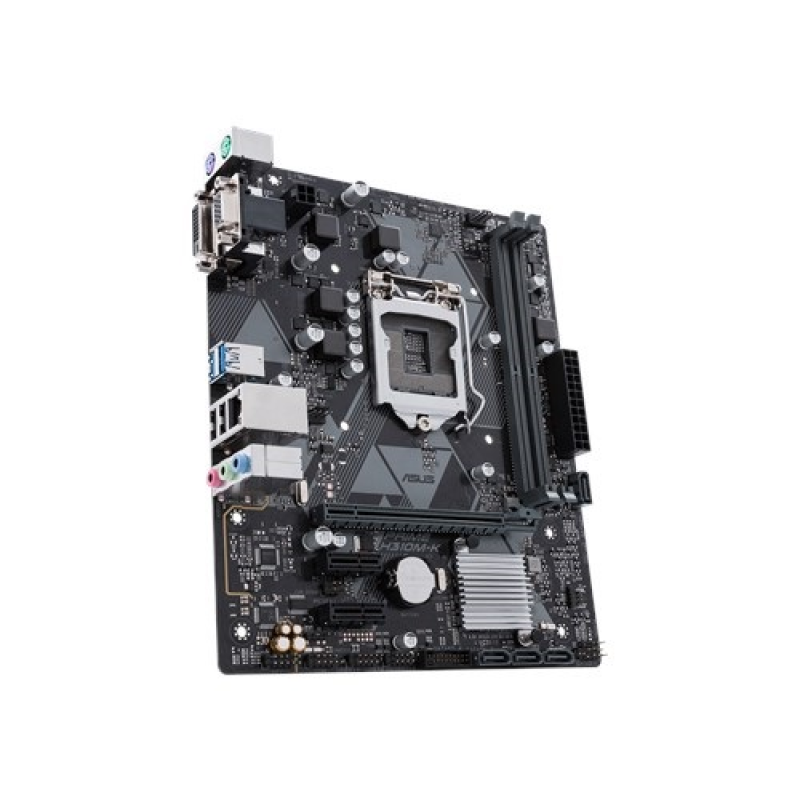

Asus PRIME H310M-K R2.0 8th Gen mATX Motherboard

Regular Price	11,000৳
Product Code	4744
Brand	Asus

Short Details

Model: PRIME H310M-K
Chipset- Intel H310
Intel Socket 1151 for 8th Gen Core Processors
2 x DIMM, Max. 32GB DDR4
3 x PCIe

More Info

11000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Chipset	Intel H310
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (SerialPresence Detect) memory information
Form Factor	mATX Form Factor 8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 mode, gray) 2 x PCIe 2.0 x1
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Maximum Memory	32GB
Graphics
Graphics	Multi-VGA output support : DVI-D/D-Sub ports - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory	Maximum shared memory of 1024 MB (for iGPU exclusively) Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Connector & Ports
USB (s)	Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) Intel® H310 Chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)
LAN Port (s)	Realtek® RTL8111H, 1 x Gigabit LAN
Supported Storage	Intel® H310 Chipset : 4 x SATA 6Gb/s port(s), gray,
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
Internal I/O Ports	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector
Warranty Information
Manufacturing Warranty	03 Years

Description

Asus PRIME H310M-K mATX 8th gen gaming motherboard compatible with Intel (Socket LGA1151) i3, i5 & i7 processor. This ultrafast dual channel DDR4 maximum 32GB memory and it has the capability of fast SATA 6Gb/s port(s) and USB 3.1 Gen 1 interface. If we consider the graphics, it will support Intel HD graphics having the maximum resolution of 1920 x 1200 @ 60 Hz for DVI-D and D-sub slots. This fan xpert motherboard has 3 x PCIe slots, RealtekÂ® RTL8111H, Gigabit LAN and RealtekÂ® ALC887 8-Channel High Definition Audio CODEC.
