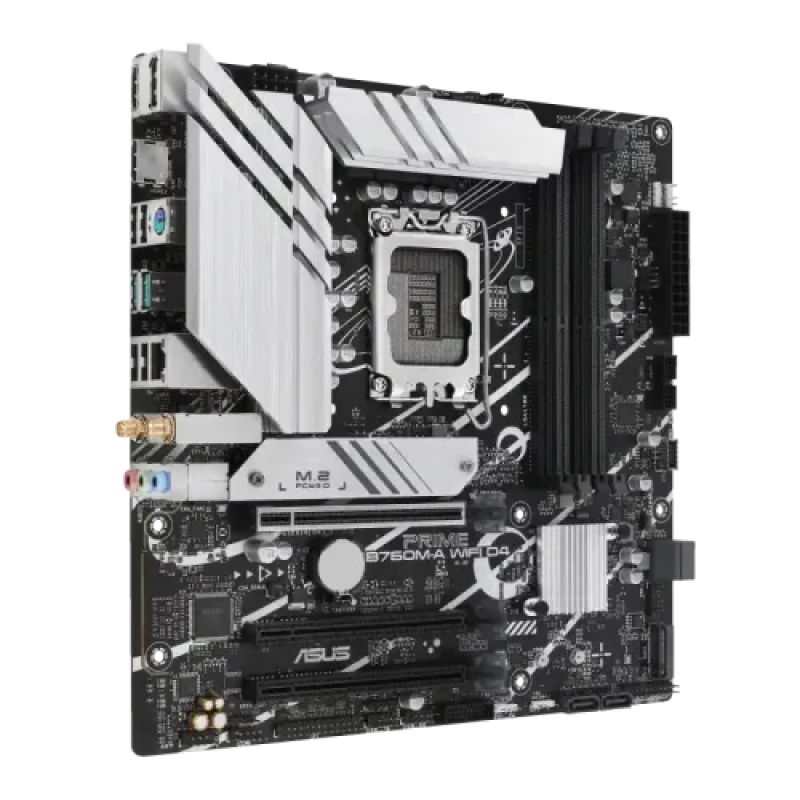

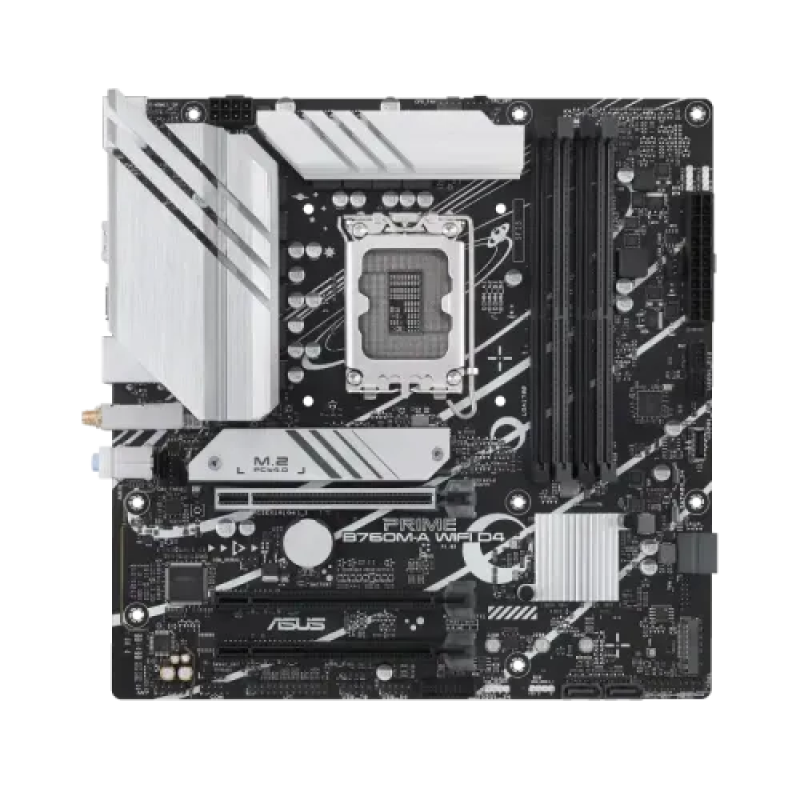

Asus PRIME B760M-A WIFI D4 mATX Motherboard

Regular Price	22,700৳
Status	In Stock
Product Code	4975
Brand	Asus

Short Details

Model: PRIME B760M-A WIFI D4
Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported Memory: 4 x DIMM, Max. 128GB, DDR4
Graphics Output: 1 x DisplayPort, 2 x HDMI
Features: 1 x Realtek 2.5Gb Ethernet, Wi-Fi 6

More Info

22700৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 14th 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B760 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x16 slot (supports x1 mode)
M.2 Socket	Total supports 2 x M.2 slots
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	Max. 128GB
Graphics
Graphics	1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 2 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI	2 x HDMI port
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 header support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port
LAN Port (s)	1 x Intel 2.5Gb Ethernet LANGuard
Wireless Communication module	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Supported Storage	Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Audio	3 x Audio jacks

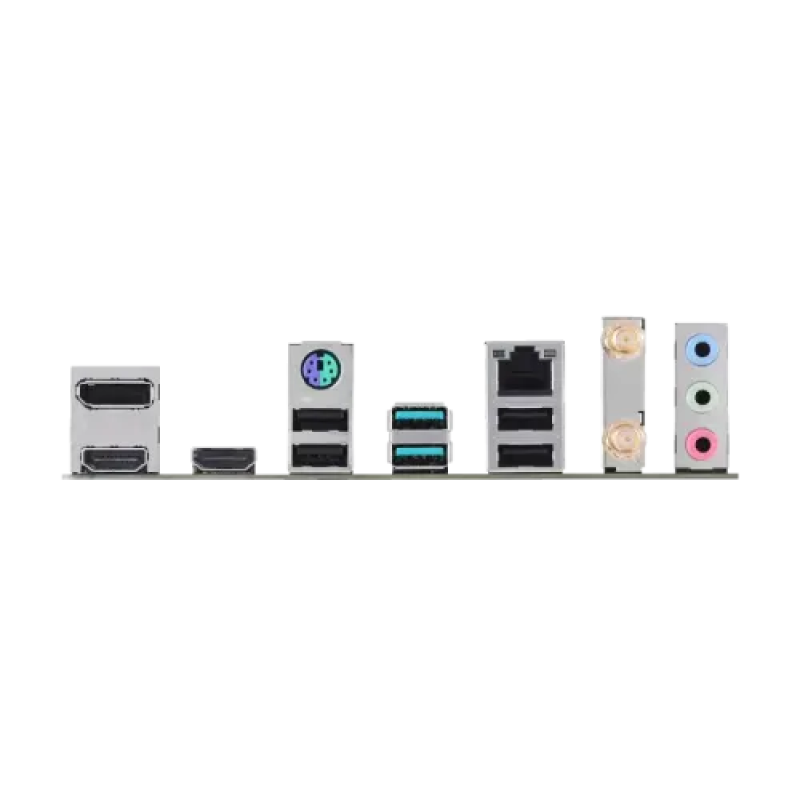

Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support 4 additional USB 2.0 ports 1 x USB 2.0 header supports 1 additional USB 2.0 port Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function Back Panel I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 2 x HDMI® ports 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool Aura Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving AI Suite 3 - Digi+ VRM - PC Cleaner ASUS CPU-Z MyAsus Norton Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years warranty

Description

Asus PRIME B760M-A WIFI D4 mATX Motherboard

The Asus PRIME B760M-A WIFI D4 14th & 13th Gen mATX Motherboard is a cutting-edge motherboard designed for high-performance computing. With support for Intel's latest 12th and 13th Gen processors and an LGA 1700 socket, this motherboard is ready to power your gaming rig or workstation with unparalleled speed and efficiency. One of the standout features of this motherboard is its ultrafast connectivity options. With PCIe 4.0 support, two M.2 slots for lightning-fast storage, Realtek 2.5Gb Ethernet for high-speed networking, and Wi-Fi 6 for wireless connectivity, you can expect blazing-fast data transfer speeds and lag-free online gaming. The Asus PRIME B760M-A also boasts a comprehensive cooling solution, featuring VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ technology. This ensures that your system stays cool even during intense gaming sessions or heavy workloads, allowing for optimal performance and stability. To enhance memory overclocking capabilities, this motherboard features ASUS OptiMem II technology, which carefully routes traces and vias and optimizes ground layers to preserve signal integrity. This results in improved memory overclocking potential, allowing you to push your system to its limits. This Asus PRIME B760M-A comes with Aura Sync RGB lighting, allowing you to customize the aesthetics of your build with onboard Addressable Gen 2 headers and an Aura RGB header for RGB LED strips. These can be easily synced with other Aura Sync-capable hardware for a cohesive and synchronized RGB lighting setup. This motherboard offers rear USB 3.2 Gen 2 and front USB 3.2 Gen 1 Type-C ports, providing versatile and high-speed connectivity options for peripherals and devices. the Asus PRIME B760M-A WIFI D4 14th, 13th & 12th Gen mATX Motherboard is a feature-rich and powerful motherboard that provides excellent performance, connectivity, and cooling capabilities for your PC build. Whether you're a gamer, content creator, or professional, this motherboard is designed to meet your high-performance computing needs. With its support for Intel's latest processors, PCIe 4.0, M.2 storage, Realtek 2.5Gb Ethernet, Wi-Fi 6, Aura Sync RGB lighting, and comprehensive cooling solution, it's a top choice for those seeking a high-quality motherboard for their next PC build. So, buckle up and experience the ultimate computing performance with the Asus PRIME B760M-A WIFI D4 12th & 13th Gen mATX Motherboard. So, buckle up and experience the ultimate computing performance with the Asus PRIME B760M-A WIFI D4 12th & 13th Gen mATX Motherboard. So, buckle up and experience the ultimate computing performance with the Asus PRIME B760M-A WIFI D4 14th 12th & 13th Gen mATX Motherboard. So, buckle up and experience the ultimate computing performance with the Asus PRIME B760M-A WIFI D4 12th & 13th Gen mATX Motherboard. So, buckle up and experience the ultimate computing performance with the Asus PRIME B760M-A WIFI D4 12th & 13th Gen mATX Motherboard. So, buckle up and experience the ultimate computing performance with the Asus PRIME B760M-A WIFI D4 14th, 12th & 13th Gen mATX Motherboard. So, buckle up and experience the ultimate computing performance with the Asus PRIME B760M-A WIFI D4 14th, 12th & 13th Gen mATX Motherboard.

What is the price of Asus PRIME B760M-A WIFI D4 mATX Motherboard in Bangladesh?

The latest price of Asus PRIME B760M-A WIFI D4 mATX Motherboard in Bangladesh is 22,700৳. You can buy the Asus PRIME B760M-A WIFI D4 mATX Motherboard at best price from our website or visit any of our showrooms.
