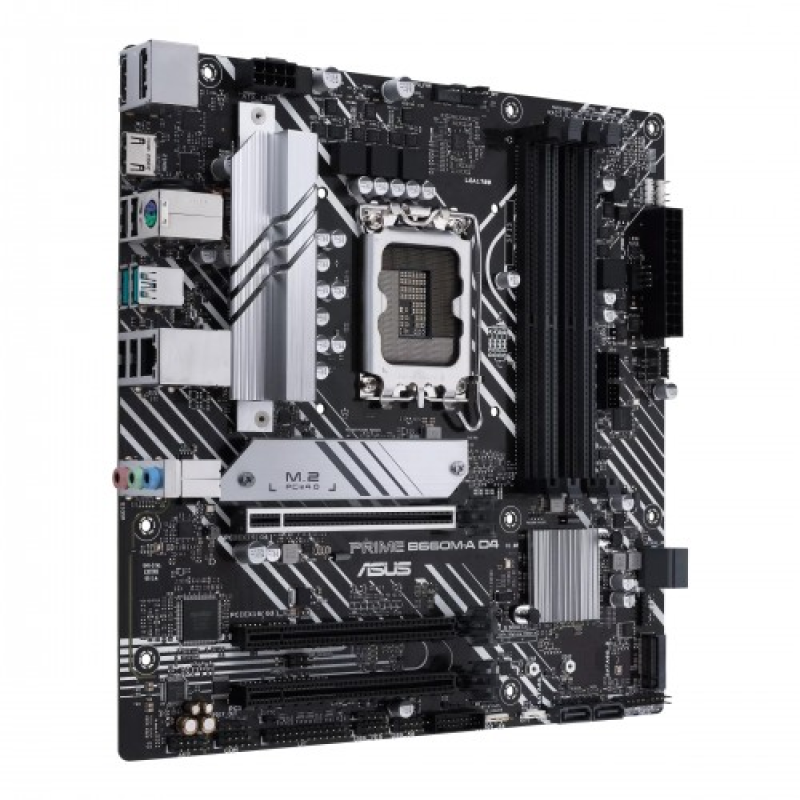

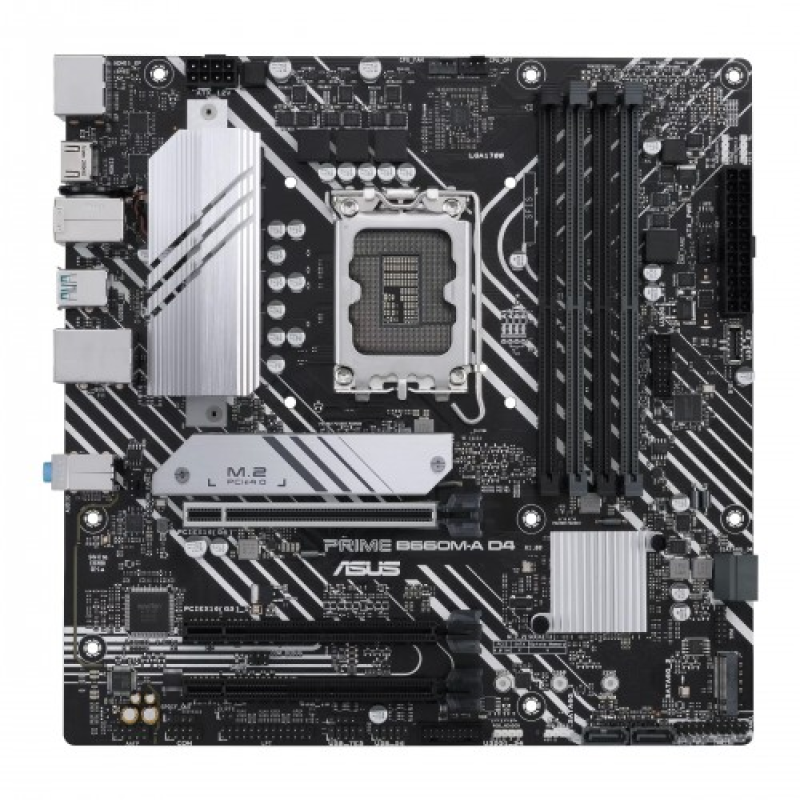

ASUS PRIME B660M-A D4 Micro ATX Motherboard

Regular Price	17,000৳
Product Code	4927
Brand	Asus

Short Details

Model: PRIME B660M-A D4
Supported CPU: 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
4 x DIMM, Max. 128GB, DDR4
2 x M.2 slots and 4 x SATA 6Gb/s ports
PCIe 4.0, Intel 1 Gb Ethernet

More Info

17000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU type.
Chipset	Intel B660 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX 24.4cm x 24.4cm
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 12th Gen Processors 1 x PCIe 4.0/3.0 x16 slot Intel B660 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x16 slot (supports x1 mode)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	5333(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory
Maximum Memory	128GB
Graphics
Graphics	1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 2 x HDMI ports (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI	2 x HDMI ports
Display Port (s)	1 x DisplayPort

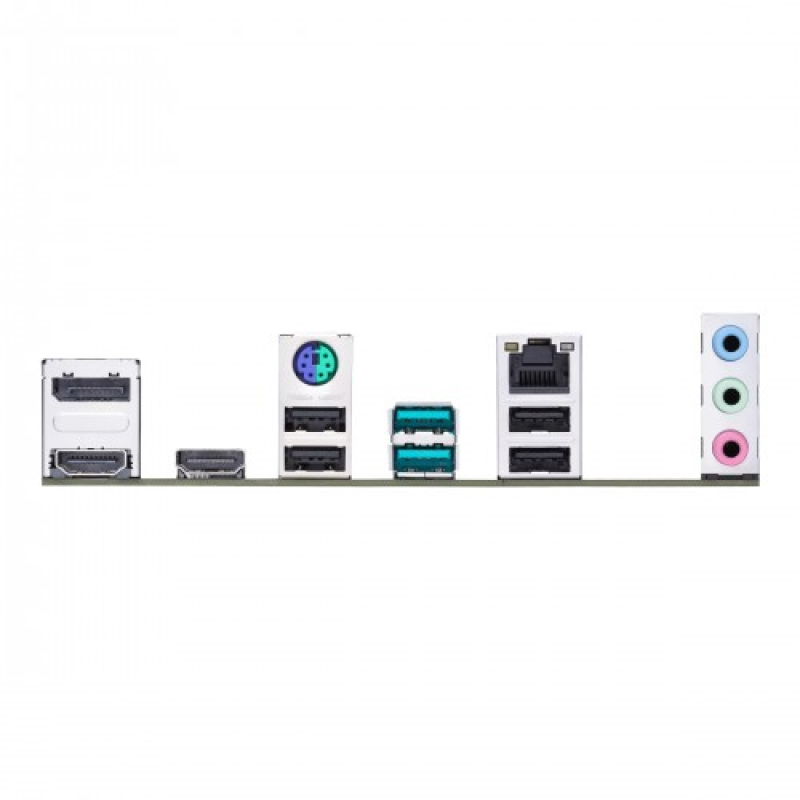

USB (s)	Rear USB (Total 6 ports) 2 x USB 3.2 Gen 2 ports (2 x Type-A ) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header support 1 USB 2.0 port
LAN Port (s)	1 x Intel 1Gb Ethernet
Supported Storage	Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports* Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel B660 Chipset ** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)* 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 2.0 headers support additional 4 USB 2.0 ports 1 x USB 2.0 header supports 1 USB 2.0 port Miscellaneous 3 x AURA Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x LPT header 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB header - Addressable Gen 2 RGB headers
Bundled Software	ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years

Description

ASUS PRIME B660M-A D4 Micro ATX Motherboard

The ASUS PRIME B660M-A D4 Supports 14th, 13th & 12th Gen Intel processors and Intel LGA 1700 socket and Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. This motherboard comes with an enhanced power solution, so that 10 power stages, a six-layer PCB, ProCool socket, military-grade TUF components, and Digi+ VRM for maximum durability. It has a comprehensive cooling system- an Enlarged VRM heatsink, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+. Here, PCIe 4.0 slot, PCIe 4.0 M.2 slots, and front USB 3.2 Gen 2 Type-C Latest connectivity are also available. This 12th Gen motherboard is specially made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard. This motherboard also has Two-way AI Noise-Cancelation, which helps to reduce Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. The motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage, ASUS PRIME B660M-A D4 motherboard is the perfect foundation for your next high-core-count battle rig. The new ASUS PRIME B660M-A D4 motherboards provide a high-performance gaming package with a long list of features including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. the latest ASUS PRIME B660M-A D4 motherboard offers 03 years warranty.

What is the price of ASUS PRIME B660M-A D4 Motherboard in Bangladesh?

The latest price of ASUS PRIME B660M-A D4 Motherboard in Bangladesh is 17,000৳. You can buy the ASUS PRIME B660M-A D4 Motherboard at best price from our website or visit any of our showrooms.
