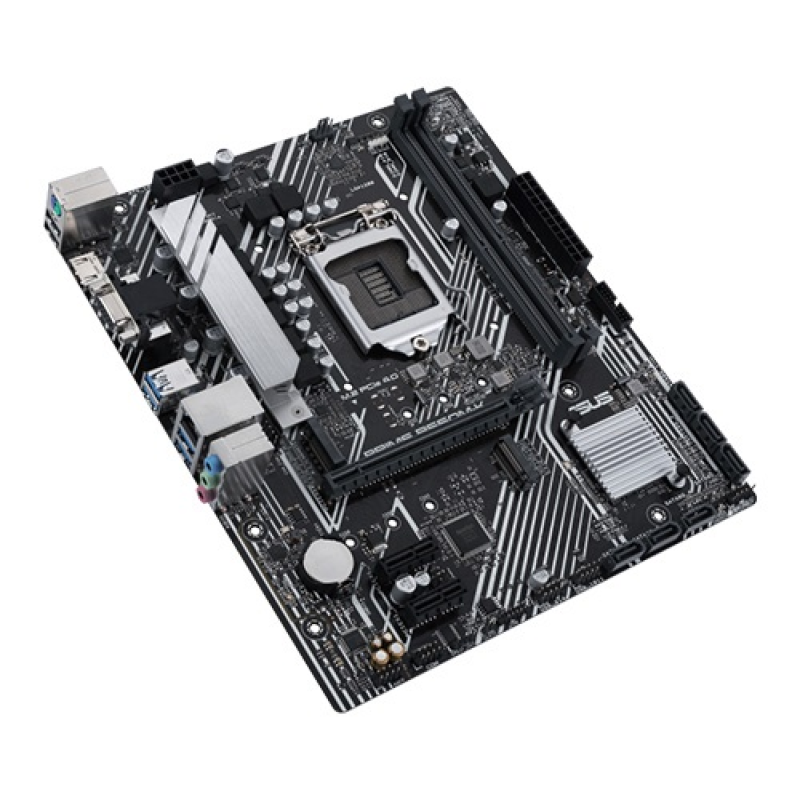

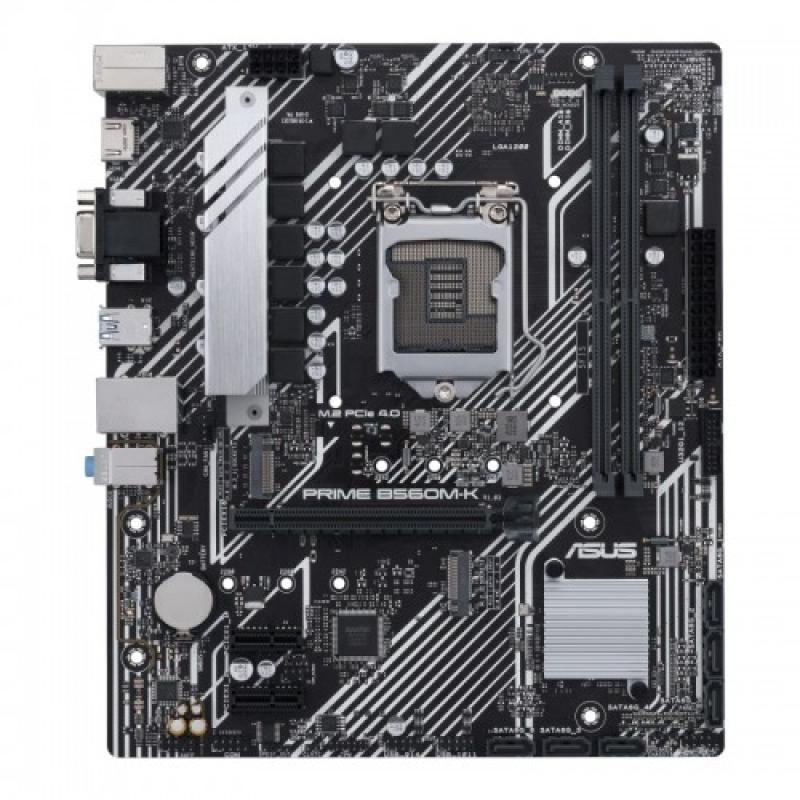

ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard

Regular Price	10,300৳
Product Code	4869
Brand	Asus

Short Details

Model: PRIME B560M-K
Intel LGA 1200 socket: Supports 10th &11th Gen Intel Core processors
8 power stages, alloy chokes & durable capacitors
PCIe 4.0, Intel 1 Gb Ethernet, USB3.2 Gen 1
VRM heatsink, PCH heatsink

More Info

10300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B560 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	microATX 9.6 inch x 8.3 inch(24.4cm x 21.1cm)
Audio	Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC: - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel11th Gen processors support PCIe 4.0 x16 mode - Intel10th Gen processors support PCIe 3.0 x16 mode Intel B560 Chipset 2 x PCIe 3.0 x1 slots
M.2 Socket	M.2_1 slot (Key M), type 2242/ 2260/ 2280 M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 3.0 x4 & SATA modes)
Memory
Type	Memory Channels:2DDR4 (Dual Channel)
Slots	Dual Channel Memory Architecture
Supported Memory	5000(OC)/ 4800(OC)/ 4600(OC)/4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) -10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. -11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.
Maximum Memory	64GB
Graphics
Graphics	1 x D-Sub 1 x HDMI 2.0
Connector & Ports
HDMI	1 x HDMI port
D-Sub (s)	1 x D-Sub port
USB (s)	Rear USB:Total 6 ports: 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports: 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Supported Storage	M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Audio	3 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin+12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x D-Sub port 1 x HDMI port 1 x Intel I219-V 1Gb Ethernet 1 x PS/2 Keyboard/Mouse combo port
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1pin)
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS Lighting Control -RGB header
Warranty Information
Manufacturing Warranty	03 Years Warranty

Description

ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard

The new ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. For Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B560M-K provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard featured with Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors, Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery, Comprehensive cooling: VRM heatsink, PCH heatsink, Ultrafast connectivity: PCIe 4.0, Intel 1 Gb Ethernet, rear USB 3.2 Gen 1 support. The ASUS Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. This motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. In this motherboard the VRM heatsink with underneath thermal pad improve heat transfer from the MOSFETs for better cooling performance. Here, Stable power is essential to extract every last bit of performance out of 11th Generation Intel Core processors. Prime B560M-K is geared to cater to the demands of these high-core count CPUs. A VRM with 6+1+1 Power Stages delivers the power and efficiency that the latest Intel processors demand. This Prime B560 series motherboard is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS B560 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

This series motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. This motherboard is Brighten Up Your Build, with 5050 RGB strips connected to the RGB header, you can create your own stunning multicolor lighting displays with static, blinking, fading, and strobing effects. This latest ASUS PRIME B560M-K Intel 10th and 11th Gen Micro ATX Motherboard comes with 03 Years Warranty.

What is the price of ASUS PRIME B560M-K 10th & 11th Gen Micro ATX Motherboard in Bangladesh?

The latest price of ASUS PRIME B560M-K 10th & 11th Gen Micro ATX Motherboard in Bangladesh is 10,500৳. You can buy the ASUS PRIME B560M-K 10th & 11th Gen Micro ATX Motherboard at best price from our website or visit any of our showrooms.
