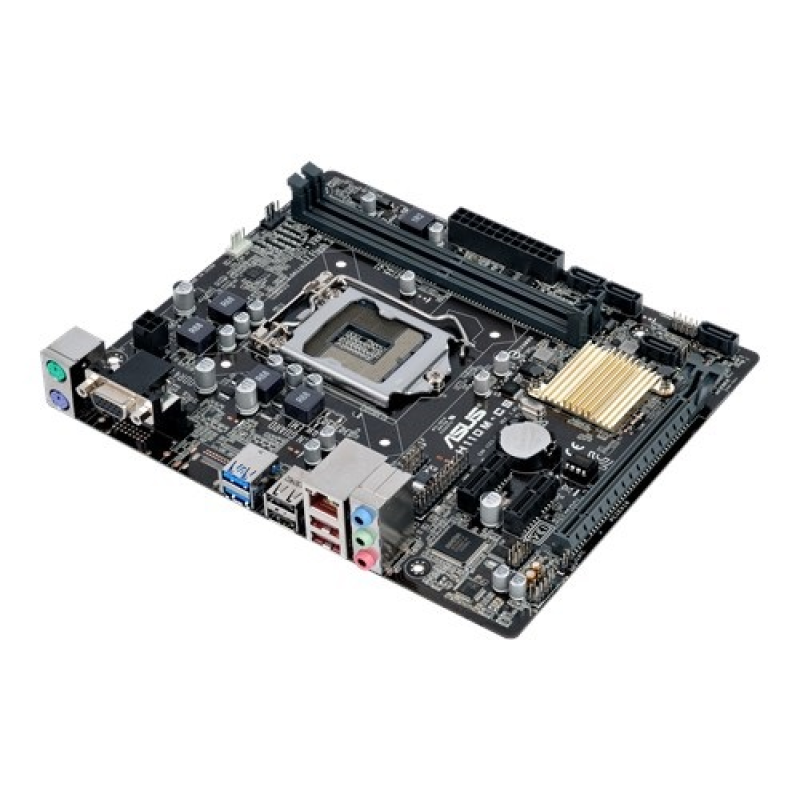

Asus H110M-CS 7th/6th Gen micro-ATX Motherboard

Regular Price	0৳
Status	In Stock
Product Code	4786
Brand	Asus

Short Details

Model: H110M-CS
CPU: 7th/6th Generation Intel Processors
Chipset: IntelÂ® H110
2 x DDR4 DIMM
3 x PCI Express slot

More Info

0৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel® H110
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information
Form Factor	uATX Form Factor 8.3 inch x 7.1 inch ( 21.08 cm x 18.03 cm )
Expansion Slots
PCI	1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1
Memory
Type	DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory
Slots	2 x DIMM
Supported Memory	Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz.
Maximum Memory	The maximum memory frequency supported varies by processor
Graphics
Graphics	VGA output support : RGB port - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Max Shared Memory	1024 MB
Connector & Ports
USB (s)	Intel® H110 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H110 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board)
LAN Port (s)	Realtek® RTL8111H
Supported Storage	Intel® H110 Chipset : 4 x SATA 6Gb/s port(s), gray, Intel® Rapid Storage Technology supports*2
Audio	Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *3 - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
Internal I/O Ports	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x LPT header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis intrusion header
TPM (Trusted Platform Module )	1 x 14-1 pin TPM connector
Warranty Information
Manufacturing Warranty	03 Years

Description

Asus H110M-CS 7th & 6th gen supreme motherboard compatible with Intel (Socket 1151) i3, i5 & i7 processor. This ultrafast dual channel max DDR4 supported maximum 32GB memory and it has the capability of fast SATA supported storage and Advanced hardware safeguards for all-round protection. If we consider the graphics of this LED lighting board, it will support Intel HD graphics having the maximum resolution of 1920 x 1200 @ 60 Hz for VGA output. This Media-acclaimed UEFI BIOS with EZ Flash 3 board has Fan Xpert advanced fan controls for ultimate cooling and silent performance and Easy PC DIY with safe motherboard-mounting.
