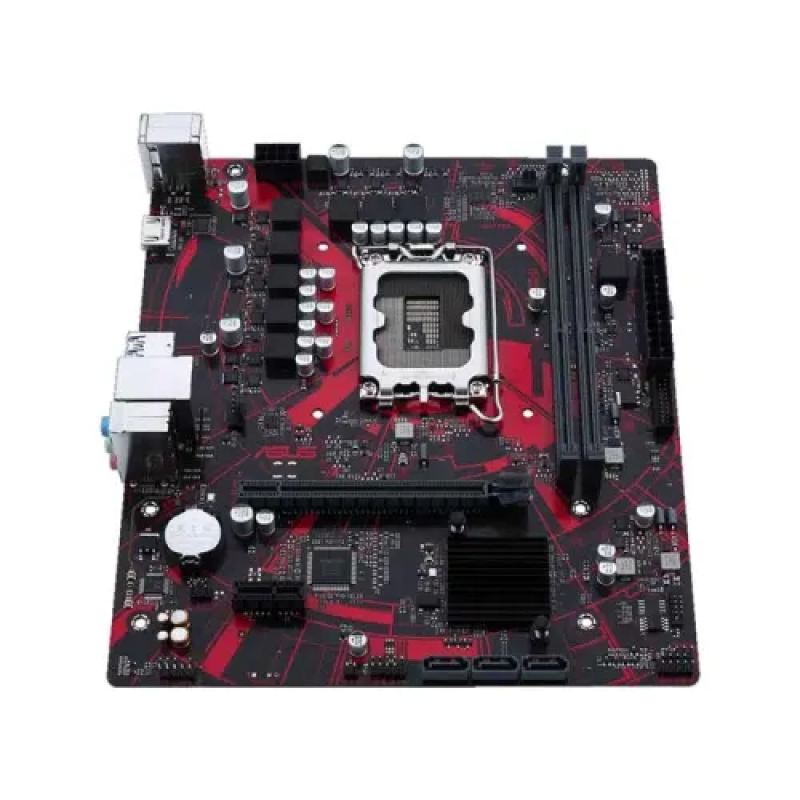

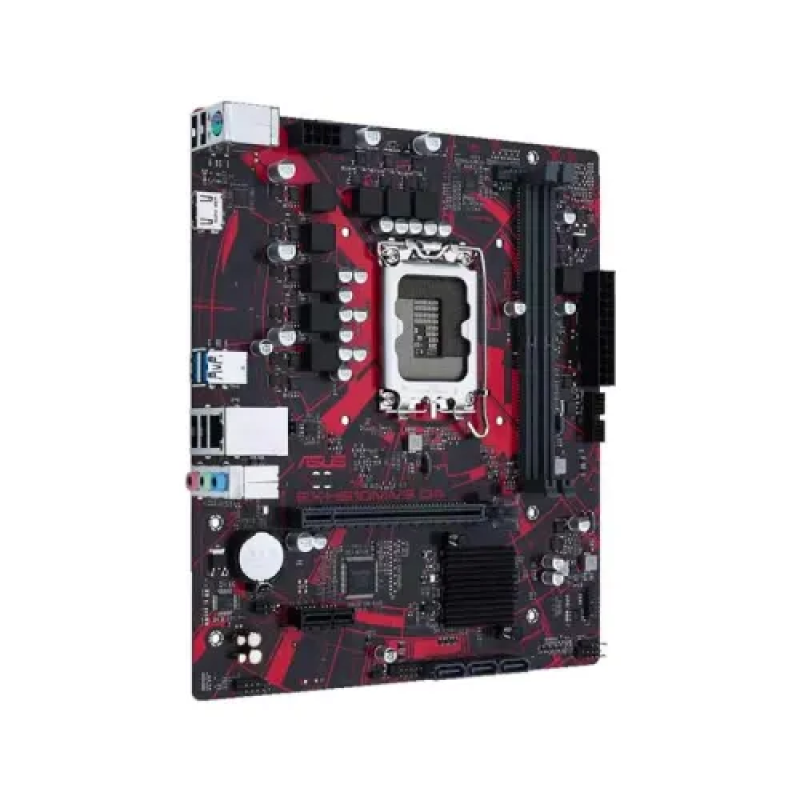

Asus EX-H610M-V3 D4 mATX Motherboard

Regular Price	9,800৳
Product Code	4745
Brand	Asus

Short Details

Model: EX-H610M-V3 D4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported Memory: 2 x DIMM, Max. 64GB, DDR4
Graphics Output: 1 x HDMI
Realtek 1Gb Ethernet

More Info

9800৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Information
Supported CPU	Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H610 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	mATX Form Factor 9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Dedicated audio PCB layers
Expansion Slots
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 4.0 x16 slot Intel H610 Chipset 1 x PCIe 3.0 x1 slot
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Max. 64GB
Graphics
Graphics	1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI	1 x HDMI port
USB (s)	Rear USB (Total 6 ports) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 4 ports) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s)	1 x Realtek 1Gb Ethernet port
Supported Storage	Total supports 3 x SATA 6Gb/s ports Intel H610 Chipset 3 x SATA 6Gb/s ports
Audio	3 x Audio jacks

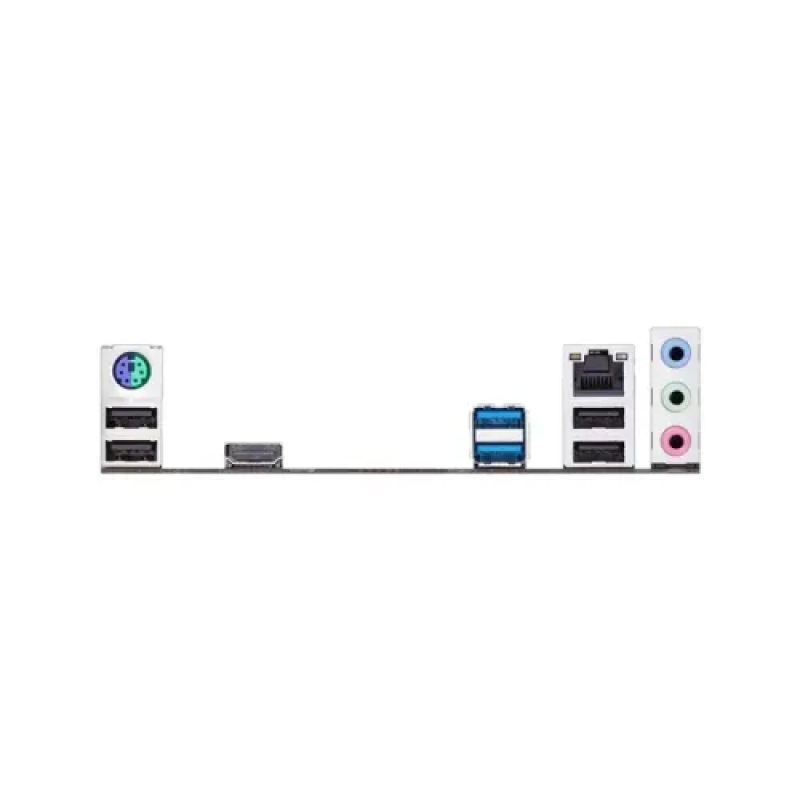

Internal I/O Ports	Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Others
Special Features	ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Aluminum heatsink design Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Anti-moisture coating - USBGuard
Warranty Information
Manufacturing Warranty	3 years warranty

Description

Asus EX-H610M-V3 D4 mATX Motherboard

The Asus EX-H610M-V3 D4 is a micro ATX motherboard with an LGA 1700 socket built for 12th, 13th, and 14th-generation Intel CPUs. PCIe 4.0, HDMI, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, and Realtek 1 Gb Ethernet are among the features. The motherboard has a bright anti-moisture layer that adds endurance and protection against moisture. It also has USBGuard, which protects against power spikes. This motherboard is a superb choice for iCafés, custom-built gaming systems, and quality-conscious enterprises. Its features, such as LANGuard, SafeSlot Core+, and 5X Protection III, ensure continuous longevity. The stainless-steel rear I/O offers further corrosion resistance. Beyond VR-ready and Epic audio-certified, the Asus EX-H610M-V3 D4 ensures an immersive gaming experience. In addition, the motherboard has been evaluated for compatibility with a broad range of peripherals, CPUs, memory modules, graphics cards, and top games. The ASUS iCafé LAB has verified the motherboard, confirming that it can handle reboots and diskless systems. The Asus EX-H610M-V3 D4 is a non-stop competitor for anybody searching for a trustworthy micro ATX motherboard, thanks to its unrivaled durability, compatibility, and gaming capabilities.

What is the price of Asus EX-H610M-V3 D4 Motherboard in Bangladesh?

The latest price of Asus EX-H610M-V3 D4 Motherboard in Bangladesh is 11,000৳. You can buy the Asus EX-H610M-V3 D4 Motherboard at best price from our website or visit any of our showrooms.
