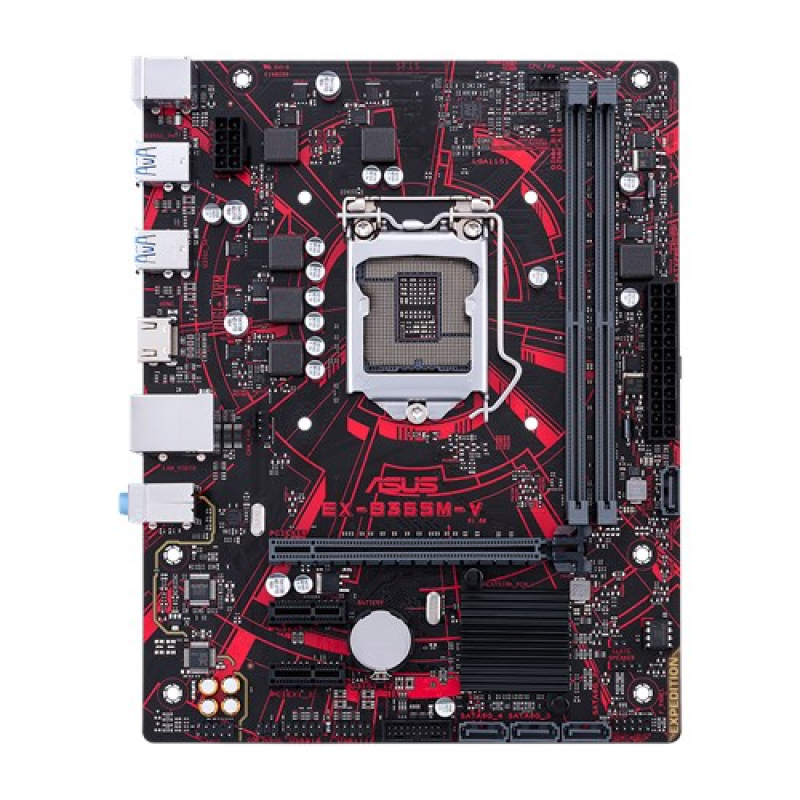

Asus EX-B365M-V DDR4 9th Gen Micro ATX Motherboard

Regular Price	0৳
Status	In Stock
Product Code	4793
Brand	Asus

Short Details

Model: Asus EX-B365M-V
Intel Socket 1151 for 9th / 8th Gen Processor
Chipset Intel B365
Max. 32GB Memory

More Info

0৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0
Chipset	Intel B365
BIOS	128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS
Form Factor	mATX Form Factor 8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm )
Audio	Realtek® ALC887 8-Channel High Definition Audio CODEC
Expansion Slots
PCI	1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0 x1
M.2 Socket	No
Memory
Supported Memory	2 x DIMM, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Maximum Memory	32GB
Graphics
Graphics	Integrated Graphics Processor- Intel® HD Graphics support VGA output support : HDMI port - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
Connector & Ports
HDMI	1 x HDMI
USB (s)	4 x USB 3.1 Gen 1 2 x USB 2.0
LAN Port (s)	1 x LAN (RJ45) port(s)
Audio	3 x Audio jack(s)
Internal I/O Ports	1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x COM Debug header 1 x Clear CMOS jumper(s)
Others
Special Features	ASUS 5X Protection III : - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 5 Phase digital power design - ASUS ESD Guards - Enhanced ESD protection Non-stop Durability : - Anti-moisture coating - Outstanding protection against moisture and corrosion - USBGuard- 120% higher voltage tolerance Non-stop Gaming : - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Non-stop Challenger : - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM
Warranty Information
Manufacturing Warranty	02 Years

Description

Asus EX-B365M-V Intel LGA 1151 mATX motherboard with luminous anti-moisture coating, USBGuard, DDR4 2666MHz, HDMI, SATA 6Gbps and USB 3.1 Gen 1, and 8-pin power connector. The best choice for iCafÃ©, configure-to-order gaming systems and quality-driven businesses.Unbeatable features including luminous anti-moisture coating, USBGuard, SafeSlot Core, Stainless-steel back I/O and 5X Protection III.ASUS Beyond VR ready and Epic audio. ASUS iCafÃ© LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
