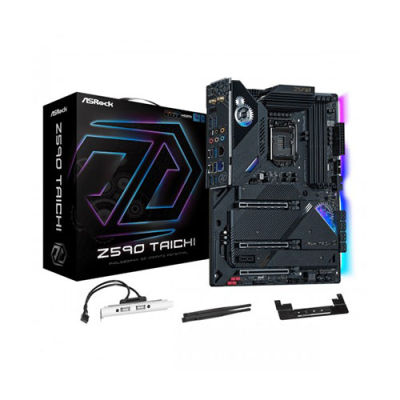

ASRock Z590 Taichi Wi-Fi 10th and 11th Gen ATX Motherboard

Regular Price 28,800৳
Product Code 211
Brand ASRock
Short Details
  • Model: Z590 Taichi
  • Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
  • Supports DDR4 5000MHz (OC)
  • Killer AX1675x 802.11ax(WiFi 6E)
  • 7.1 CH HD Audio, Nahimic Audio
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Specification

Basic Information
Supported CPU- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
- Digi Power design
- 14 Power Phase design
- Supports Intel Turbo Boost Max 3.0 Technology
- Supports Intel K-Series unlocked CPUs
- Supports ASRock Hyper BCLK Engine III
ChipsetIntel Z590
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, DRAM(VCCM, VPPM, VTT), VCCSFR, VCCPLL, VCCSTG, VCCSTG_OUT, PCH Voltage, VCCIO_0, VCCIO_1_2, VCCST, VCCSA, CPU Internal PLL, GT PLL, Ring PLL, System Agent PLL, Memory Controller PLL Voltage Multi-adjustment
Form Factor- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
- 2oz Copper PCB
Expansion Slots
PCI11th Gen Intel Core Processors
- 3 x PCI Express x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE2); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE2) / Gen3x4 (PCIE4))*
10th Gen Intel Core Processors
- 3 x PCI Express x16 Slots (PCIE1/ PCIE2/ PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE2); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE2) / Gen3x4 (PCIE4))
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
M.2 Socket- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel Core Processors)
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Memory
TypeDual Channel DDR4 Memory Technology
Slots4 x DDR4 DIMM Slots
Supported Memory- 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC)
- 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
Maximum MemoryMax. capacity of system memory: 128GB
Graphics
Graphics- 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
- Three graphics output options: 1 x HDMI and 2 x Intel Thunderbolt 4
- Supports Triple Monitor
- Supports Intel Thunderbolt 4 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 2.0 and Intel Thunderbolt 4 Ports
Connector & Ports
HDMI1 x HDMI Port
USB (s)- 2 x USB 4.0 Thunderbolt 4 Type-C Port (40 Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
LAN Port (s)1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)
- Supports Killer LAN Software
- Supports Killer DoubleShot Pro
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Supported Storage- 6 x SATA3 6.0 Gb/s Connectors
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel Core Processors)
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Audio- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- WIMA Audio Capacitors (For Front Outputs)
- ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Nahimic Audio
Internal I/O Ports- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
- 1 x Clear CMOS Button
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED
TPM (Trusted Platform Module )- 1 x SPI TPM Header
Others
Special FeaturesWireless LAN:
- Killer AX1675x 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ax
- Supports Dual-Band 2x2 160MHz with extended 6GHz band support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.2 + High speed class II
- Supports MU-MIMO
- Supports Killer LAN Software
- Supports Killer DoubleShot Pro
Warranty Information
Manufacturing Warranty03 years warranty

Description

ASRock Z590 Taichi 10th and 11th Gen ATX Motherboard

ASRock Z590 Taichi Motherboard supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors, 12 Phase Dr.MOS Power Design, DDR4 5000MHz (OC), 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio, Graphics Output Options: HDMI,, 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio. This Graphics card comes with 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi, 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4), 1 x M.2 (PCIe Gen3 x2 & SATA3), 8 x USB 3.2 Gen1 (4 x Rear, 4 x Front), 4 x USB 2.0 (2 x Rear, 2 x Front), 1 x Front USB 3.2 Gen1 Type-C and Intel Gigabit LAN. Here, Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. For using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming so that each sound is properly positioned in 360° on a radar for a full immersion during the game. This motherboard comes with Dual Graphics Outputs - HDMI + DisplayPort combo, you have more graphics output options now. And also this motherboard also supports with the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry, And the USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
