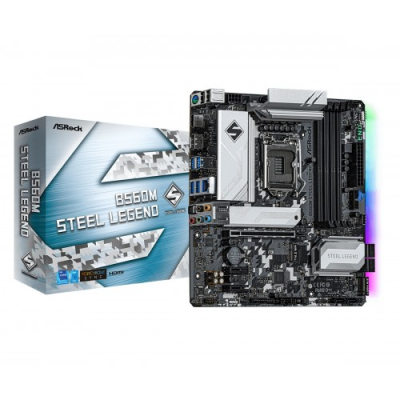

ASRock B560M Steel Legend 10th and 11th Gen Micro ATX Motherboard

Regular Price 15,000৳
Product Code 197
Brand ASRock
Short Details
  • Model: B560M Steel Legend
  • Supports 10th Gen and 11th Gen Intel Core Processors
  • 10 Phase Dr.MOS Power Design
  • Supports DDR4 4800MHz (OC)
  • Graphics Output: HDMI, DisplayPort
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Specification

Basic Information
Supported CPU- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost Max 3.0 Technology
ChipsetIntel B560
BIOS- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2, VPPM, VCCIN AUX, Voltage Multi-adjustment
Form FactorMicro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
- Gold Audio Jacks
- 15μ Gold Audio Connector
- Nahimic Audio
Expansion Slots
PCI11th Gen Intel Core Processors
- 1 x PCI Express 4.0 x16 Slot
10th Gen Intel Core Processors
- 1 x PCI Express 3.0 x16 Slot

- 2 x PCI Express 3.0 x1 Slots
M.2 Socket- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
Memory
TypeDual Channel DDR4 Memory Technology
Slots4 x DDR4 DIMM Slots
Supported Memory- 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
- 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
Maximum Memory- Max. capacity of system memory: 128GB
Graphics
Graphics- 11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
- Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built-In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc
- Dual graphics output: Support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports

Graphics Output Options: HDMI, DisplayPort
Connector & Ports
HDMI- 1 x HDMI Port
Display Port (s)- 1 x DisplayPort 1.4
USB (s)Connector:
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

Rear Panel I/O:
- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
LAN Port (s)- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage6 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with 11th Gen Intel Core Processors) or Gen3 x4 (32 Gb/s) (with 10th Gen Intel Core Processors)
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
AudioConnector:
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

Rear Panel I/O:
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Internal I/O PortsConnector:
- 1 x Chassis Intrusion and Speaker Header
- 2 x RGB LED Headers
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)

Rear Panel I/O:
- 3 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
TPM (Trusted Platform Module )- 1 x SPI TPM Header
Others
Bundled Software- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC
Warranty Information
Manufacturing Warranty03 years warranty

Description

ASRock B560M Steel Legend 10th and 11th Gen Micro ATX Motherboard

ASRock B560M Steel Legend Micro ATX Motherboard supports 10th Gen Intel® Core™ Processors and 11th Gen Intel Core Processors, 10 Phase Dr.MOS Power Design, DDR4 4800MHz (OC), 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1, 1 x M.2 Key-E for WiFi, Graphics Output Options: HDMI, DisplayPort and 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio. This motherboard comes with 6 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4), 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 x Front USB 3.2 Gen2x2 Type-C (20 Gb/s)6 x USB 3.2 Gen1 (4 x Rear, 2 x Front), 6 x USB 2.0 (2 x Rear, 4 x Front) and Dragon 2.5 Gigabit LAN. The Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. This motherboard is built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. This motherboard is featuring sturdy components as well as more elaborately styled pieces. The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Here, Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users. For using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming so that each sound is properly positioned in 360° on a radar for a full immersion during the game.

Dr. MOS:

Dr.MOS means the integrated power stage solution which is optimized for synchronous buck-set down voltage applications, compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Premium 60A Power Choke

ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, Compared to traditional chokes. Thus providing enhanced and improved Vcore voltage to the motherboard.
